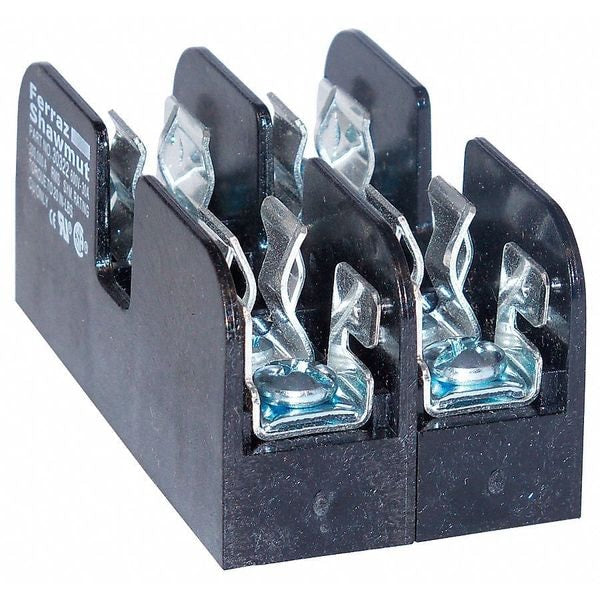

Mersen 30322 Fuse Block 600VAC 600VDC Midget 30A 2-Pole

Brand: MERSEN
SKU: 30322
Availability: Out Of Stock
$43.90
$43.90
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN 30322 is a midget fuse block that accommodates 30A 1-1/2 in x 13/32 in midget fuses. It features a choice of box, screw, or pressure-plate connectors to fit a wide range of stranded or solid copper wire. The insulators are glass-filled polycarbonate (GFPC) with a dielectric strength exceeding 2500V. It meets the requirements of UL 4248.

  • Accommodates 30A 1-1/2" x 13/32" midget fuses
  • Features pressure plate with double quick connects at both ends
  • Constructed with glass-filled polycarbonate (GFPC) insulators

Product Highlights

The MERSEN 30322 fuse block is suitable for use with midget fuses and offers reliable protection with its robust construction and versatile connection options.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: 30322
  • Country of Origin: Mexico
Technical Specifications
Item number
30322
Description
Fuse Block 600VAC 600VDC Midget 30A 2-Pole Pressure Plate with Reinforced Clip
EAN/UPC Code
782001759995
Rated voltage AC UL
600 V
Rated voltage DC UL
600 V
Frequency (Hz)
50/60 Hz
Ampere Rating
30 A
ROHS Compliant
Yes
AC or DC
AC/DC
Fuse Class
Midget
Short Circuit Current Rating (SCCR)
10 to 100 (dependant on fuse rating) kA
Fuse Type
Midget
Number of Poles
2-Pole
Fuse Installation Method
Clip-in
Torque Rating
2.26 N m
Max Fuse Rating
30 A
Installation Mounting
Screw Mount or DIN Rail
Product Width
40.6 mm
Product Length
77.2 mm
Product Height
33.3 mm
Product group
Fuse Bases
Body/Insulating Material
Glass Filled Polycarbonate
Product Weight
0.1043 kg
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Amps
30
Poles
2
Voltage
600
Series
303
Catalog Number
30322
Catalog / Class
Fuse Block
SKU
30322
Amp Range
0 to 30A
Connector Type
Pressure Plate
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Fuse Block Design
Open
Body Material
GFPC
Standards
CSA Certified, UL Listed
For Fuse Series
ATM, ATQ, DCT, OTM, TRM
Wire Range
14 AWG to 10 AWG
Fits Fuse Type
Midget
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Non-Rejection
Rated Torque (In.-Lb.)
20 lb-in
Current - Minimum
0 A
Current - Maximum
30 A
CAD Available
Yes
