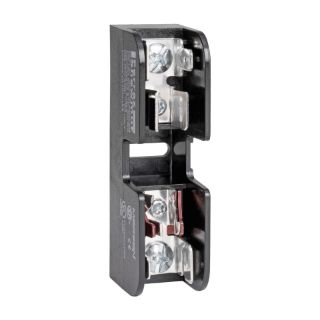

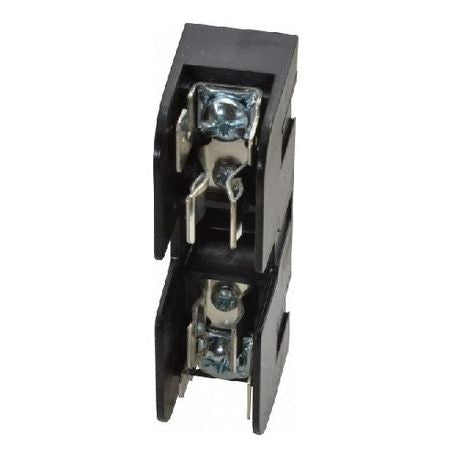

Mersen 30321R Open Style Fuse Block, 600 VAC/VDC, 30 A, 14 to 10 AWG Wire, 1 Pole

Product Description

The Mersen 30321R is an open style fuse block suitable for a variety of applications. It operates at a voltage rating of six hundred VAC and VDC and can handle an amperage rating of thirty amps. This single-pole fuse block works with wires ranging from fourteen to ten AWG.

• Accommodates midget fuses of size 1-1/2 inches by 13/32 inches.
• Compliant with UL and CSA standards.
• Easy to install with DIN rail or threaded mounting options.

Product Highlights

This fuse block features glass reinforced polycarbonate insulators and a robust connection type using a pressure plate with double quick-connect terminals.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer: Mersen

Technical Specifications

• MPN: 30321R
• Class: CC
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Fuse Length: 1-1/2 inches
• Fuse Diameter: 13/32 inches
• Number of Poles: 1
• Dimensions: 3.04 inches H x 0.85 inches W x 1.31 inches D
• Temperature Rating: 125 degrees C
• Material: Glass Reinforced Polycarbonate

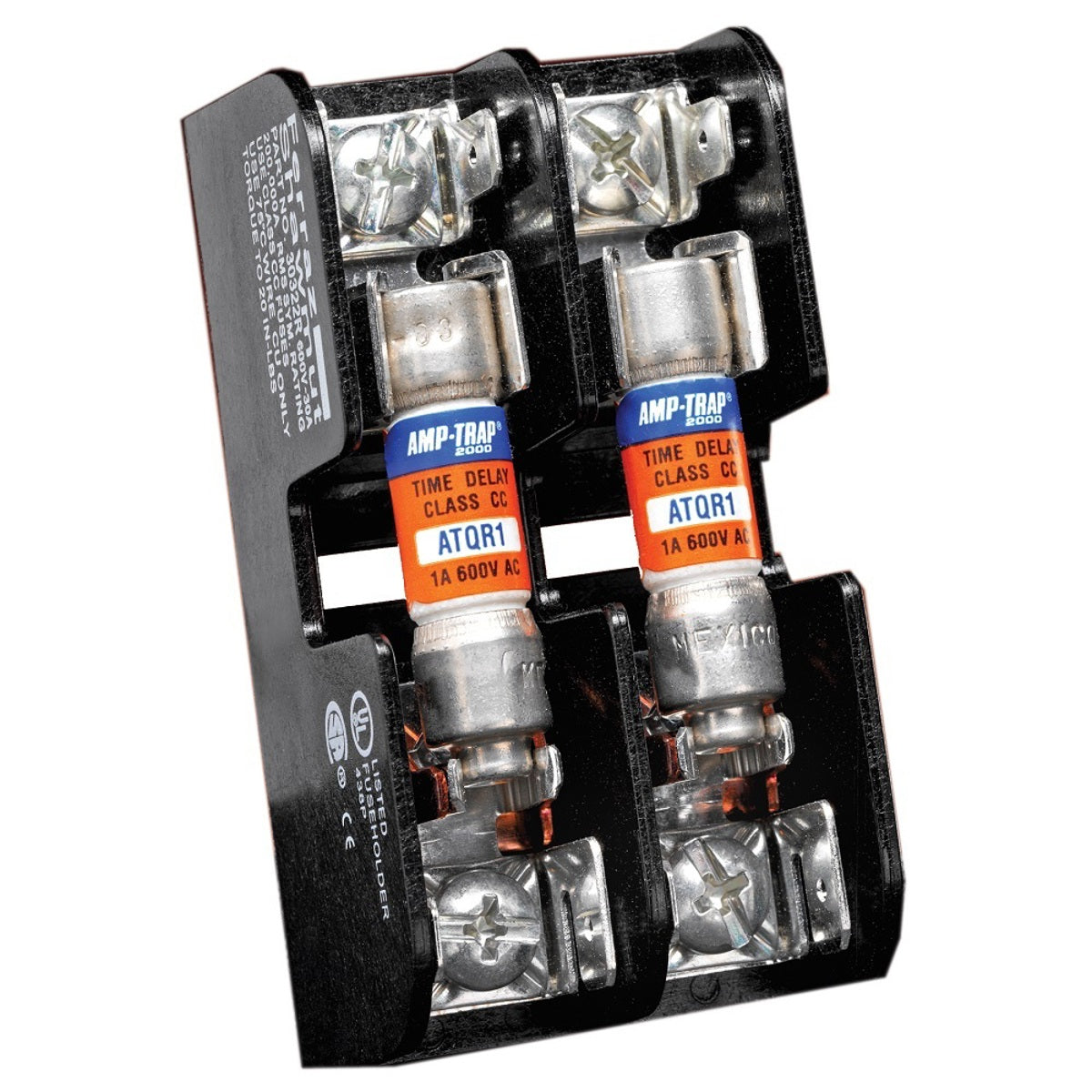

• Suitable for Use With: ATDR, ATMR, and ATQR Series Fuses
• Mounting Type: DIN Rail/Threaded
