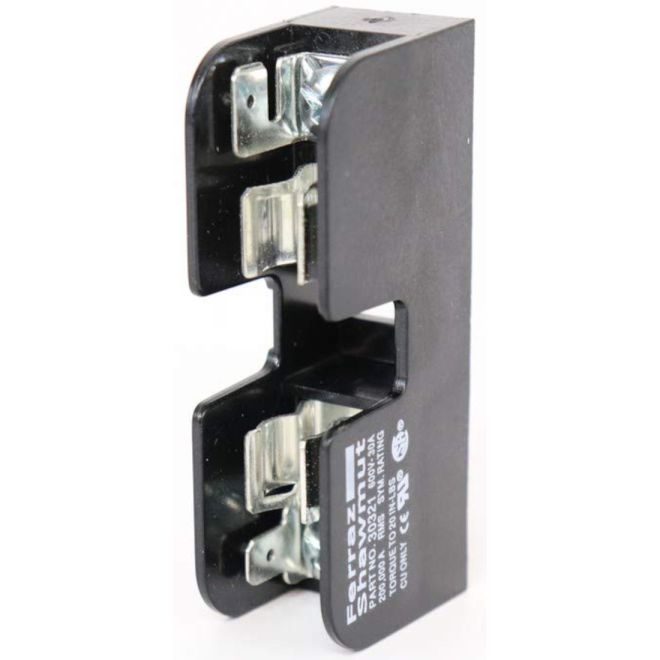

Mersen 30321 Fuse Block 600VAC/600VDC Midget 30A 1-Pole

Product Description

The Mersen 30321 midget fuse block accommodates 30A 1-1/2" x 13/32" midget fuses and Class CC fuses. It features a choice of box, screw, or pressure-plate connectors for a wide range of stranded or solid copper wire. Insulators are glass-filled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V.

• Rated for 600VAC and 600VDC
• Accepts 30A midget fuses
• Features pressure plate with reinforced clip

Product Highlights

This fuse block is ideal for various applications requiring reliable circuit protection with midget fuses.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 30321

Technical Specifications

• Item number: 30321
• Description: Fuse Block 600VAC 600VDC Midget 30A 1-Pole Pressure Plate with Reinforced Clip
• EAN/UPC Code: 782001758271
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Midget
• Short Circuit Current Rating (SCCR): 10 to 100 kA
• Fuse Type/Class: Midget
• Number of Poles: 1-Pole
• Fuse Installation Method: Clip-in
• Torque Rating: 20 lb-in
• Max Fuse Rating: 30 A
• Installation Mounting: Screw Mount or DIN Rail
• Product Width: 0.85 in
• Product Length: 3.04 in
• Product Height: 1.31 in
• Product group: Fuse Bases
• Body/Insulating Material: GFPC
• Product Weight: 0.11 lb
• Amps: 30
• Voltage: 600
• Poles: 1
• Fuse Type: Midget
• Current Rating: 30 Amps
• Connector Type: Screw
• Mounting Type: Screw Mount / DIN Rail
• Number Of Poles: 1
• Number of Positions: 1
• Material Type: Polycarbonate (PC)
• Specification Met: CSA, UL
• Gauge: 10.0
• Manufacturer Part Number: 30321
• Manufacturer Alternate Number: Y218544
• Rated Voltage AC: 600VAC
• Rated Voltage DC: 600VDC
• Rated Current: 30A
• Connection/Terminal Material: Tin-Plate
• Terminal Type: Copper Pressure Plate with Reinforced Clip
• Height (mm): 33mm (1.3")
• Width (mm): 22mm
• Depth (Length) (mm): 77mm
• Weight (lbs): 0.11
• UOM: ea
• Type: Fuse Holder
