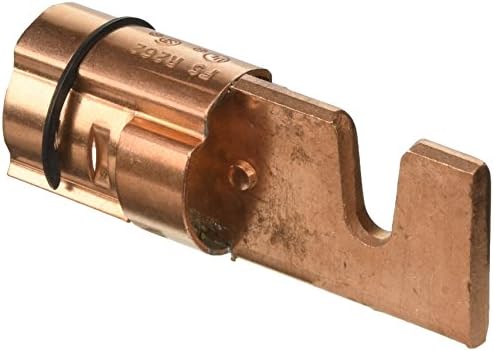

Mersen 262 Fuse Reducer 250V 60A to Fit 200A Clips

Product Description

The MERSEN 262 fuse reducer allows the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. It is designed for UL Class H and K fuses and is non-rejection type. Tested to 200,000A.

• Allows the use of lower rated fuses in existing equipment.
• Improves circuit protection with closer rated time-delay fuses.
• Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips.

Product Highlights

Mersen fuse reducers enable the use of lower rated fuses in existing equipment, enhancing circuit protection. Ideal for replacing renewable or one-time fuses with fuses sized closer to the motor nameplate current.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 262

Technical Specifications

• Item number: 262
• Description: Fuse Reducer 250V Class H, K 60 - 200
• EAN/UPC Code: 782001752262
• Rated voltage AC UL: 250 V
• Design Details: 60 - 200
• Product Width: 4.8 mm
• Product Length: 73.9 mm
• Product Height: 28.7 mm
• Product group: Fuse reducer
• Product Weight: 0.2087 kg
• Class: Class H/K
• Current Rating: 60 A
• Manufacturer Part Number: 262
• Series: PV Series
• Unit of Measure: EA
• Voltage: 250 Volts
• Brand: FERRAZ SHAWMUT
• Condition: New
