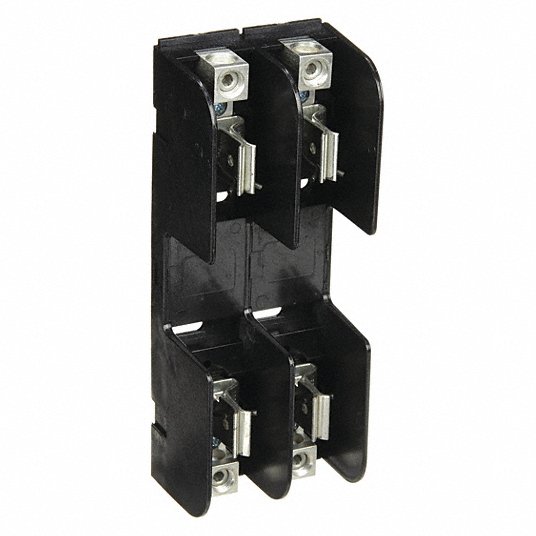

Mersen 21037 Fuse Block 250VAC/250VDC Class H/K 100A 2-Pole

Product Description

The MERSEN 21037 fuse block accommodates all Class H, K and R 250 and 600V power fuses. It features screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. The insulators are molded glass-filled polycarbonate with verified dielectric strength in excess of 2500V.

• Accommodates all Class H, K and R 250 and 600V power fuses
• Features screw, pressure plate, box and special order stud connectors
• Insulators are molded glass-filled polycarbonate

Product Highlights

This fuse block is designed for use in lighting, heating, and motor circuits. It provides straightforward access for fuse replacement with an open-top design and secure mounting options.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 21037
• Country of Origin: Mexico

Technical Specifications

• Item number: 21037
• Description: Fuse Block 250VAC 250VDC Class H/K 100A 2-Pole Copper Box
• EAN/UPC Code: 782001664428
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 100 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class H/K
• Short Circuit Current Rating (SCCR): 50 kA
• Number of Poles: 2
• Wiring range: 2/0-#6
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Box
• Fuse Installation Method: Clip-in
• Torque Rating: 120 lb-in
• Max Fuse Rating: 100 A
• Installation Mounting: Direct Screw Mount
• Product Width: 3.2 in
• Product Length: 8.33 in
• Product Height: 2.28 in
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 1.25 lb
• Amps: 100
• Volts AC: 250
• Brand: MERSEN
• Manufacturer Part Number: 21037
• AC Voltage Rating: 250 V AC
• Compatible Fuse Series: NLN, NON, OT, REN, RF, RLN
• Current - Maximum: 100 A
• Current - Minimum: 61 A
• DC Voltage Rating: 250 V DC
• Compatible Fuse Class or Type: Class H; Class K5
• Fuse Block Terminal Type: Box Lug
• Fuse Block Design: Open
• Fuse Block Mounting Style: Bolt-Down
• Fuse Block Style: Non-Rejection
• Overall Height: 2.28 in
• Overall Length: 8.33 in
• Overall Width: 3.2 in
• Standards: CSA Certified; UL Listed
• Visual Indication: Non-Indicating
• Wire Size - Maximum: 2/0 AWG
• Wire Size - Minimum: 6 AWG
• UNSPSC: 39121411
• Type: Fuse Block
• Maximum Amperage: 100 A
• Voltage Rating: 250V AC/DC
• Fuse UL Class: H, K5
• Wire Range: 6 to 2/0 AWG
• Connector Type: Box Lug
• Spring Reinforced Clip: Yes
