Mersen 21036R Fuse Block 250VAC 250VDC Class R 100A 1-Pole

Product Description

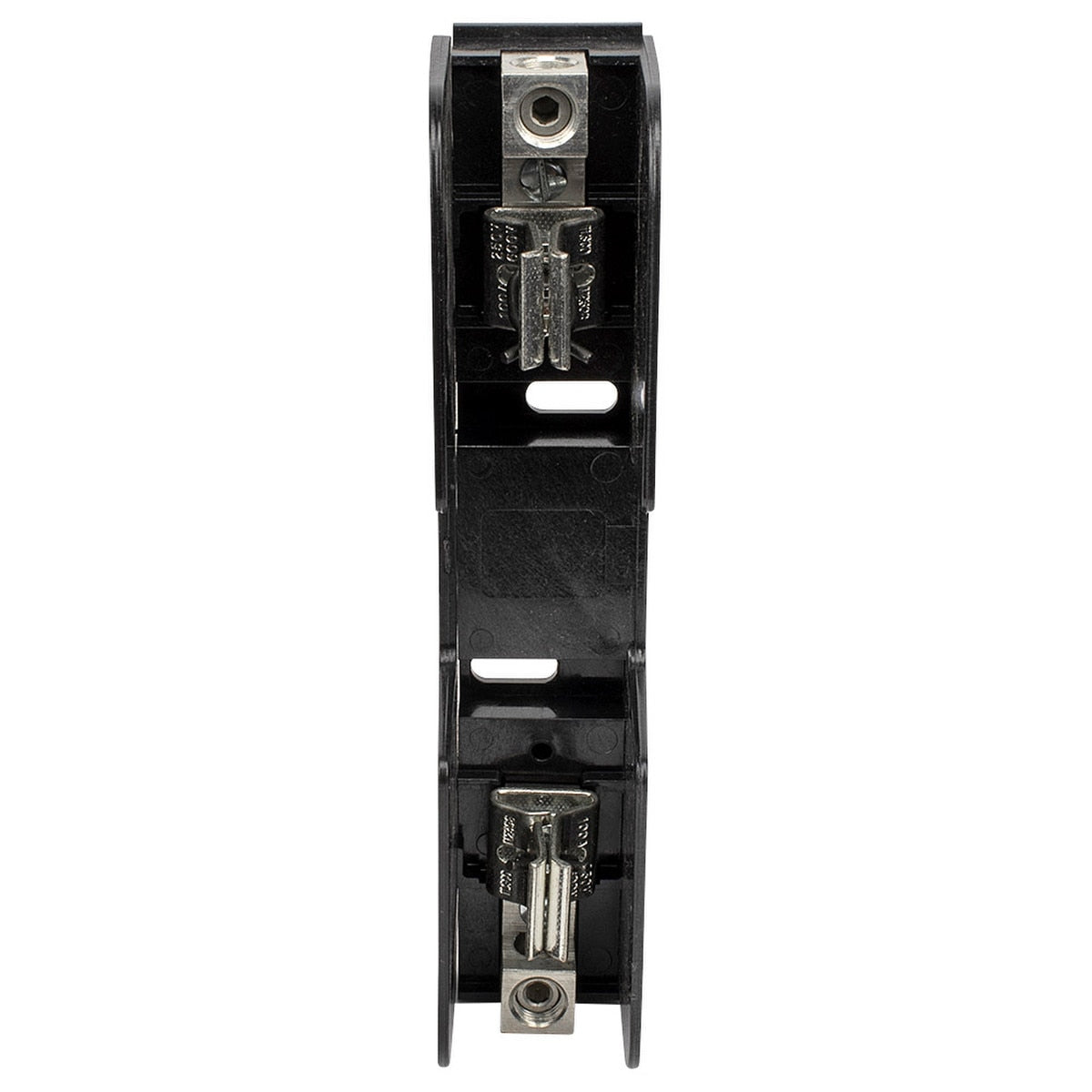

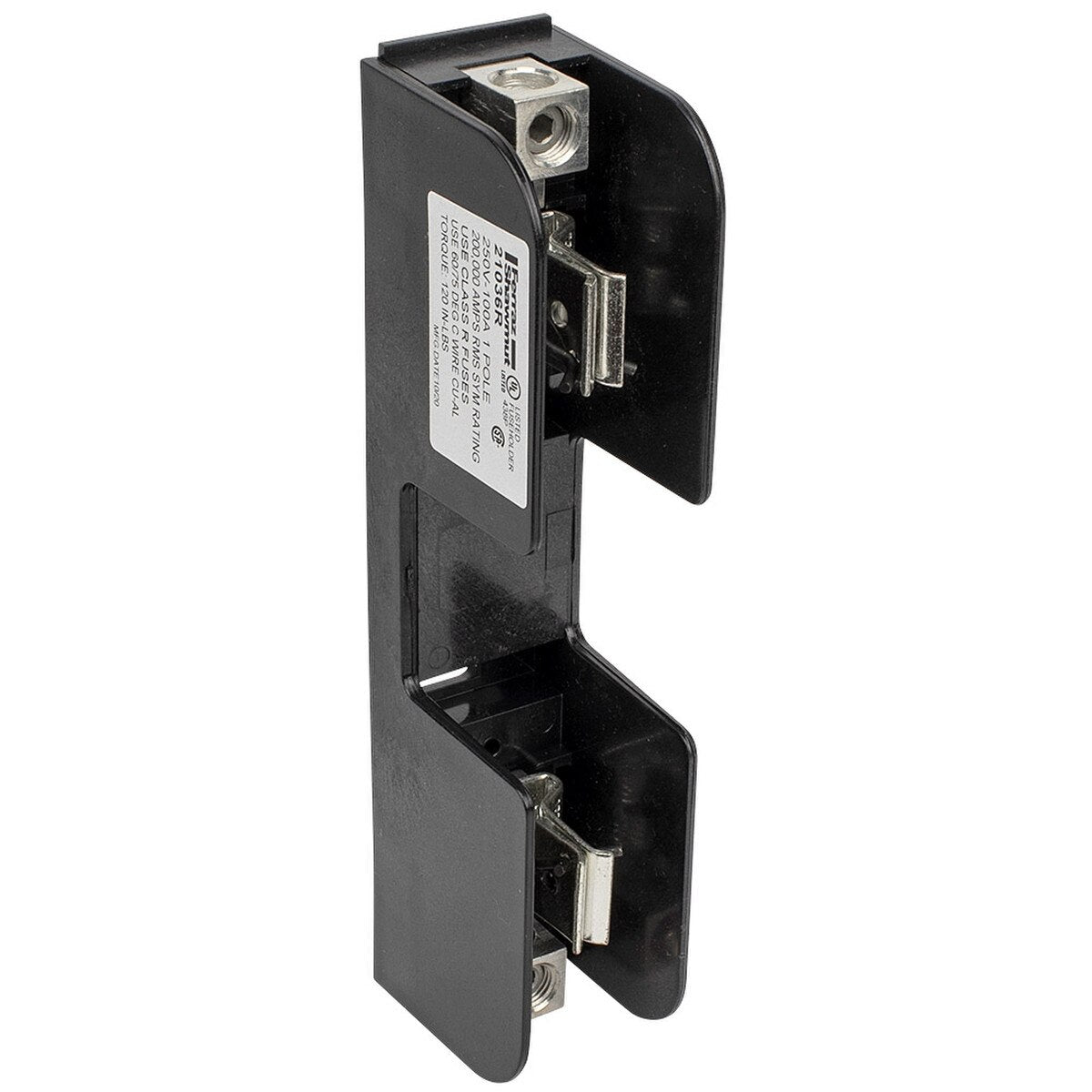

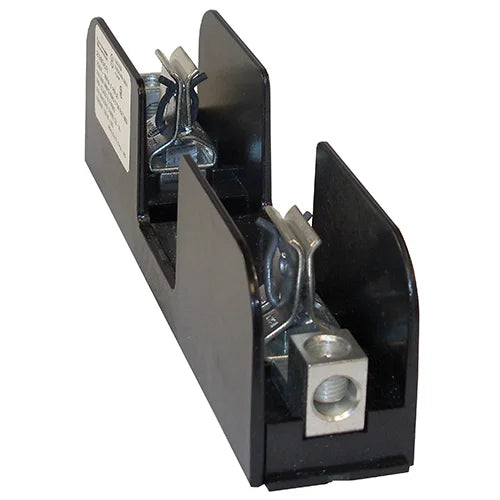

The Mersen 21036R is a fuse block designed for Class R fuses, accommodating 250V AC/DC and 100A. This 1-pole fuse block features a box with reinforced clip connection. Constructed with glass-filled polycarbonate, it ensures durability and reliable performance. It is suitable for use with A2D-R, A2K-R and TR-R Series Fuses.

• Accommodates Class R fuses
• Rated for 250V AC/DC and 100A
• Features a box with reinforced clip connection

Product Highlights

Durable fuse block for Class R fuses, offering reliable protection with its robust construction and secure connections.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer Part Number: 21036R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 21036R
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 100 A
• Connection: Box with Reinforced Clip
• Material: Glass Filled Polycarbonate
• Mounting: Screw
• Number of Poles: 1-Pole
• Phase: 1
• Standard: All fuse blocks meet the requirements of UL 4248 UL listed, guide IZLT, File E52283 UL recognized component guide IZLT2, file E52283 CSA certified class 6225, File 32169
• UPC: 782001664640
• GTIN: 00782001664640
• Item Type: UL/CSA Fuse Bases
• Voltage Rating: 250V AC/DC
• Width: 1.68 in
• Height: 2.28 in
• Length: 8.33 in
• Series: 2HKRFB
• Amp Range: 61 to 100 A
• Fuse Type: Industrial
• Standards: CSA Certified, UL Listed
• Wire Size: 6 to 2/0 AWG
• Wire Range: 6 to 2/0 AWG
• Body Material: Glass Filled Polycarbonate
• For Fuse Size: 5 7/8 in L x 1 1/16 in dia
• Fuse UL Class: R
• Connector Type: Box Lug
• Fits Fuse Type: Industrial
• Mounting Style: Bolt-Down
• For Fuse Series: A2D-R, A2K-R, TR-R
• Fuse Block Style: Rejection
• Fuse Holder Code: L
• Fuse Block Design: Open
• Visual Indication: Nonindicating
• Frequency Range (Hz): 50/60 Hz
• Max. Operating Temp.: 80 deg C
• Rated Torque (In.-Lb.): 120 lb-in
• Spring Reinforced Clip: Yes
• Length (Straight Wireway): 8.33 in
• Indicating / Nonindicating: Nonindicating
• Short Circuit Current (KA): 200 kA
• Fuse Block or Fuse Holder Type: Fuse Block
• Amp Range of Fuse Block or Holder: 0 to 100A
• Fuse Block or Holder AC Voltage Rating: 250VAC
• Fuse Block or Holder DC Voltage Rating: 250VDC
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Fuse Class: Class R
• Fuse Type/Class: Class R
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Box
• Fuse Installation Method: Clip-in
• Torque Rating: 120 lb-in
• Max Fuse Rating: 100 A
• Installation Mounting: Direct Screw Mount
• Product Width: 1.68 in
• Product Length: 8.33 in
• Product Height: 2.28 in
• Product group: Fuse Bases
• Product Weight: 0.8 lb
• Dimensions: 8.33 in L x 1.68 in W x 2.28 in H
• Suitable For Use With: A2D-R, A2K-R and TR-R Series Fuse
• AC Voltage Rating: 250V
• DC Voltage Rating: 250V
• Made to Order: True
• Maximum Operating Temperature: 80°C
• Mounting Type: Threaded
