Product Description

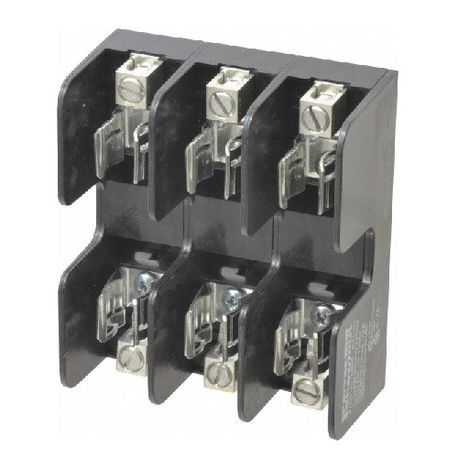

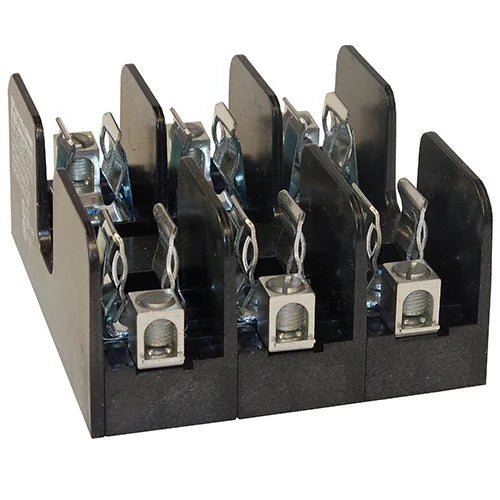

The MERSEN 20608 open style fuse block accommodates all Class H and K power fuses. It supports a wire size of 2 to 14 AWG Cu/Al and features insulators made of molded glass filled polycarbonate (GFPC). The fuse block has a verified dielectric strength in excess of 2500V and a 10 kA short circuit current rating.
- Accommodates Class H and K power fuses
- Supports 2 to 14 AWG Cu/Al wire
- Features GFPC insulators with dielectric strength exceeding 2500V
Product Highlights
This Mersen fuse block offers reliable protection with a 10kA short circuit current rating and is suitable for various applications.
Product Information
Standard Information
-
Brand: MERSEN
-
Manufacturer Part Number: 20608
Technical Specifications
-
Material: GFPC
-
Type: Open Style
-
Wire Size: 2 to 14 AWG Cu/Al
-
Mounting Type: Threaded
-
Voltage Rating: 250 VAC/VDC
-
Class: H
-
Amperage Rating: 60 A
-
Number Of Poles: 3
-
Dimensions: 4.75 in L x 4.08 in W x 2.12 in H
-
Connection Type: Box
-
Manufacturer: Mersen
-
Brand: Mersen
-
Short Circuit Current Rating (SCCR): 50 kA
-
Frequency (Hz): 50/60 Hz
-
AC or DC: AC/DC
-
Fuse Class: Class H/K
-
Fuse Installation Method: Clip-in
-
Torque Rating: 45 lb-in
-
Max Fuse Rating: 60 A
-
Installation Mounting: Direct Screw Mount
-
Product Width: 4.08 in
-
Product Length: 4.75 in
-
Product Height: 2.12 in
-
Body/Insulating Material: Glass Filled Polycarbonate
