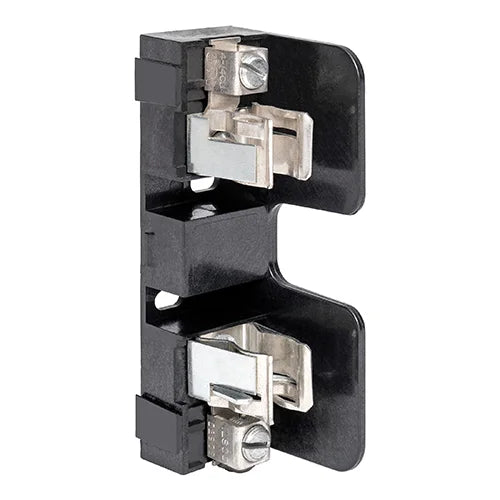

Mersen 20605R Fuse Block 250VAC/250VDC Class R 60A Adder Box

Product Description

The MERSEN 20605R is a fuse block that accommodates Class H, K, and R 250 and 600V power fuses. It features screw, pressure plate, box, and special order stud connectors for stranded or solid copper or aluminum wire. The insulators are molded glass-filled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V.

• Accommodates Class H, K, and R 250 and 600V power fuses
• Features screw, pressure plate, box, and special order stud connectors
• Insulators are molded glass-filled polycarbonate (GFPC)

Product Highlights

The MERSEN 20605R fuse block is suitable for use with Class R fuses and has a short circuit current rating (SCCR) of 200kA.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 20605R
• Country of Origin: China

Technical Specifications

• Item number: 20605R
• Description: Fuse Block 250VAC 250VDC Class R 60A Adder Box with Reinforced Clip
• EAN/UPC Code: 782001756666
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class R
• Short Circuit Current Rating (SCCR): 200 kA
• Number of Poles: Adder
• Fuse Installation Method: Clip-in
• Torque Rating: 45 lb-in
• Max Fuse Rating: 60 A
• Installation Mounting: Direct Screw Mount
• Product Width: 1.31 in
• Product Length: 4.75 in
• Product Height: 2.12 in
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 0.2 lb
• AC Voltage Rating: 250
• DC Voltage Rating: 250
• Interrupting Rating: 200,000 AIC RMS
• Brand: Mersen/Ferraz Shawmut
• Series: 20
• Voltage: 250
• Mpn: 20605R
• Upc: 782001756666
• Gtin: 782001756666
• Manufacturer: Mersen
• Fuse Amperage Rating: 60 Amp
• Fuse Type (UL): Class R
• Component: Fuse Holder
• Mounting: Screw
