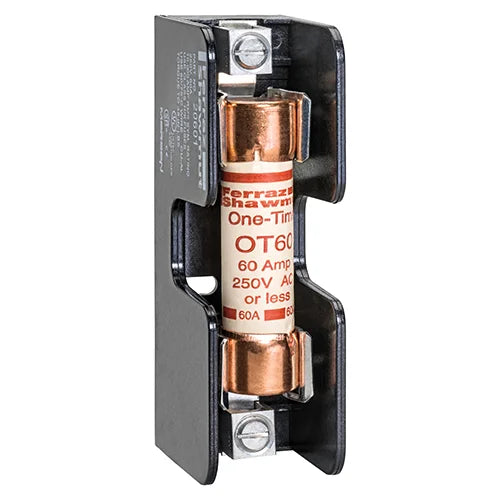

MERSEN Mersen 20601 Fuse Block 250VAC 250VDC Class H/K 60A 1-Pole Box
MERSEN Mersen 20601 Fuse Block 250VAC 250VDC Class H/K 60A 1-Pole Box

Mersen 20601 Fuse Block 250VAC 250VDC Class H/K 60A 1-Pole Box

Brand: MERSEN
SKU: 20601
Availability: In Stock

Ships same day if ordered by 12 pm
$51.85
$51.85
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MERSEN 20601 fuse block accommodates all Class H, K and R 250 and 600V power fuses. It is rated for 250VAC and 250VDC, 60A, and features a 1-pole configuration with box connections. The insulator is molded from glass-filled polycarbonate with a dielectric strength exceeding 2500V. This fuse block meets UL 4248 and CSA class 6225 standards.

  • Accommodates all Class H, K and R 250 and 600V power fuses
  • Choice of screw, pressure plate, box and special order stud connectors
  • Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V

Product Highlights

Accommodates Class H, K, and R fuses with a glass-filled polycarbonate insulator and multiple connector options.

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: 20601
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
20601
Manufacturer
Mersen
Brand
Mersen
Country of Origin
Mexico
Made in USA
No
Amperage Rating
60
Connection
Box
Material
Glass Filled Polycarbonate
Mounting
Screw
Number of Poles
1-Pole
Phase
1
Standard
All fuse blocks meet the requirements of UL 4248 UL listed, guide IZLT, File E52283 UL recognized component guide IZLT2, file E52283 CSA certified class 6225, File 32169
Item Type
UL/CSA Fuse Bases
Voltage Rating
250
Description
Fuse Block 250VAC 250VDC Class H/K 60A 1-Pole Box
EAN/UPC Code
782001757571
Rated voltage AC UL
250 V
Rated voltage DC UL
250 V
Frequency (Hz)
50/60 Hz
Ampere Rating
60 A
ROHS Compliant
Yes
AC or DC
AC/DC
Fuse Class
Class H/K
Short Circuit Current Rating (SCCR)
50 kA
Fuse Installation Method
Clip-in
Torque Rating
45 lb-in
Max Fuse Rating
60 A
Installation Mounting
Direct Screw Mount
Product Width
1.46 in
Product Length
4.75 in
Product Height
2.12 in
Product group
Fuse Bases
Body/Insulating Material
Glass Filled Polycarbonate
Input Voltage
250 V
Rated Voltage DC
250 V
Frequency
50/60 Hz
Amperage
60 A
Poles
1
