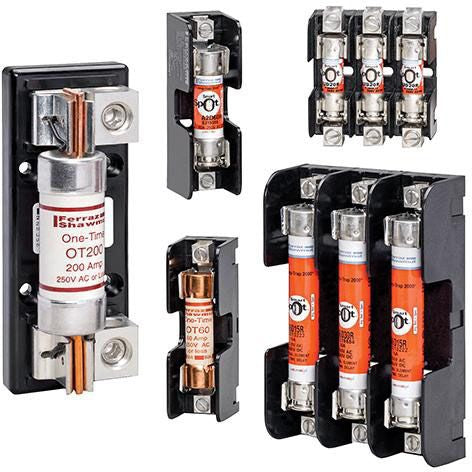

Mersen 20600 Fuse Block 60A 250V Add-a-fuse

Product Description

The MERSEN 20600 is an add-on fuse block rated for 60 amps and 250 volts, designed to expand existing fusible disconnect or panelboard installations. This accessory mounts alongside compatible base fuse blocks to add a supplemental fuse position without replacing the primary assembly. Licensed electricians and electrical contractors install this component in commercial and industrial distribution panels, motor control centers, and service equipment where additional overcurrent protection is required at a discrete circuit point.

The 20600 is suited for branch circuit and feeder applications where code-compliant overcurrent protection must be added to an existing fusible system. It is commonly used in light commercial and industrial electrical installations where panel real estate is limited and modular expansion of fuse positions is preferred over full assembly replacement.

Key Features

• Add-on design expands existing fuse block assemblies without full replacement
• 60-amp continuous rating supports branch circuit and feeder applications
• 250-volt rating suitable for single-phase and low-voltage three-phase distribution
• Modular construction simplifies field installation alongside compatible base blocks

Compatibility

Designed as an OEM-style add-on fuse block for use with compatible MERSEN modular fuse block systems rated at 60 amps and 250 volts.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before mounting or wiring this fuse block. Verify that the upstream overcurrent device and conductors are rated to match or exceed the 60-amp, 250-volt rating of this block before energizing. Do not install fuses rated above the block's marked ampere or voltage rating.

Technical Specifications

• Ampere Rating: 60 amps
• Voltage Rating: 250 volts
• UPC: 78200166319

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 20600
