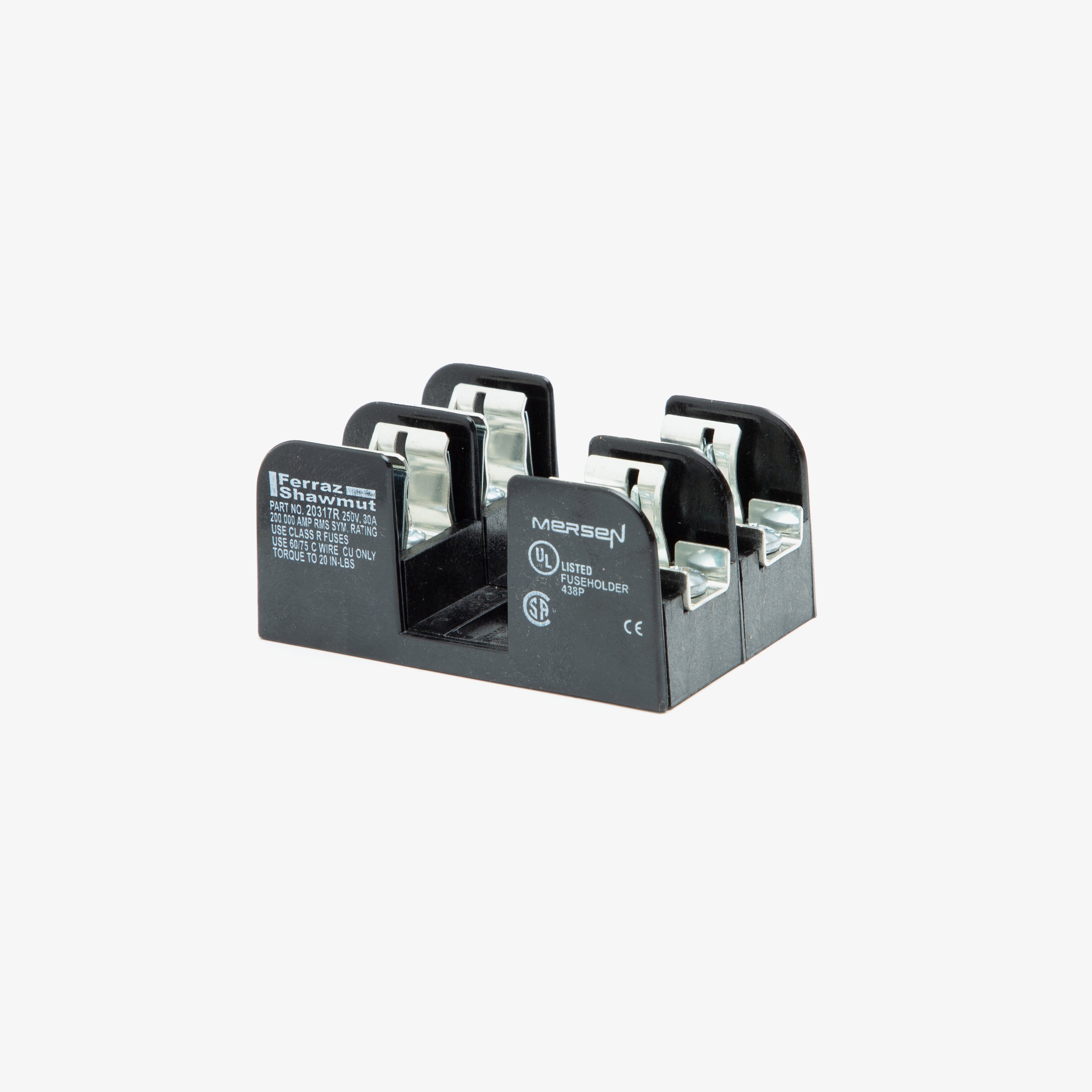

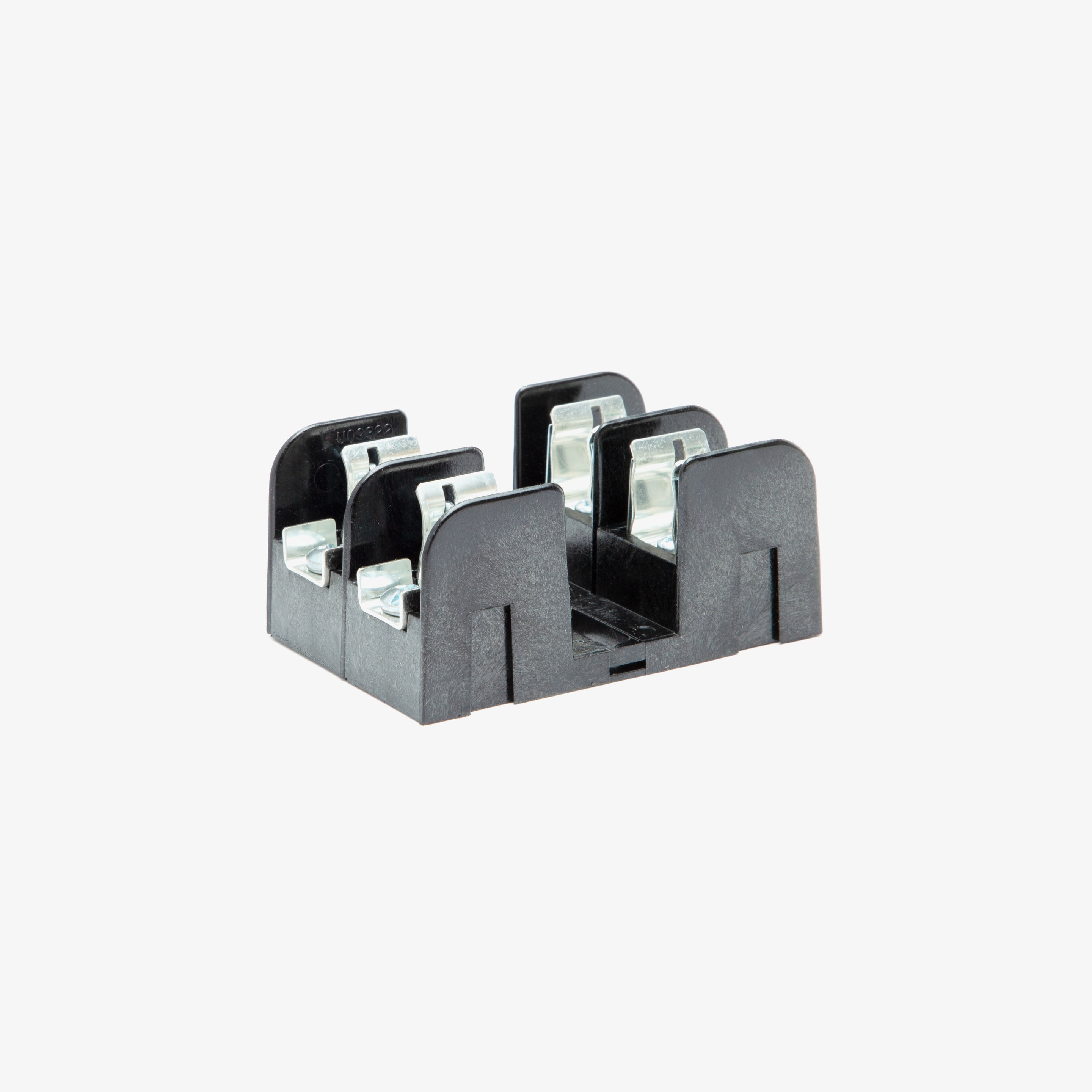

Mersen 20317R Fuse Block 250VAC/VDC Class R 30A 2-Pole Screw

Product Description

The MERSEN 20317R is a fuse block designed for 250VAC and 250VDC Class R fuses, with a 30A current rating and a 2-pole configuration. It features a screw connection with a reinforced clip. Constructed from glass-filled polycarbonate, this fuse block is suitable for screw mounting. It meets UL 4248 requirements and is UL and CSA certified. This fuse block accommodates 14 to 10 AWG wire.

• Rated for 250VAC and 250VDC
• Accepts Class R fuses
• Features screw connection with reinforced clip

Product Highlights

The MERSEN 20317R fuse block provides reliable protection with its robust construction and compliance with industry standards.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 20317R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 20317R
• Manufacturer: Mersen
• Brand: Mersen
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 30
• Connection: Screw with Reinforced Clip
• Material: Glass Filled Polycarbonate
• Mounting: Screw
• Number of Poles: 2
• Voltage Rating: 250
• Voltage: 250 VAC/VDC
• Amperage: 30 A
• Wire Gauge: 14 to 10 AWG
• Poles: 2
• Amps AC [Specifications]: 30 A
• Body Material [Specifications]: GFPC
• Fuse UL Class [Specifications]: Class R
• Connector Type [Specifications]: Screw with Reinforced Clip
• Mounting Style [Specifications]: Direct Screw Mount
• Number of Poles [Specifications]: 2-pole
• Frequency Range (Hz) [Specifications]: 50/60 Hz
• Max. Operating Temp. [Specifications]: 80 deg C
• Rated Torque (In.-Lb.) [Specifications]: 20 lb-in
• Short Circuit Current (KA) [Specifications]: 200 kA
• Country of Origin (subject to change) [Specifications]: Mexico
• Fuse Class: UL Class RK1 and RK5
• Terminal Type: Screw Type - Cu #10-14
• Interrupting Rating: 200,000 AIC RMS
• Series: 20
• UL Class: R
• Visual Indication: Non-Indicating
• Fuse Installation Method: Clip-in
• Wire Range: 14 AWG to 10 AWG
• Fits Fuse Block Style: Rejection
