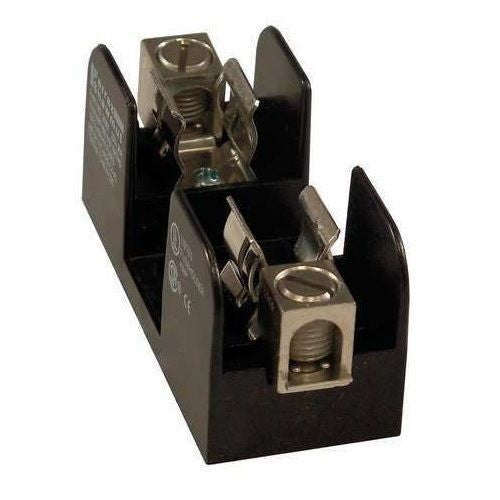

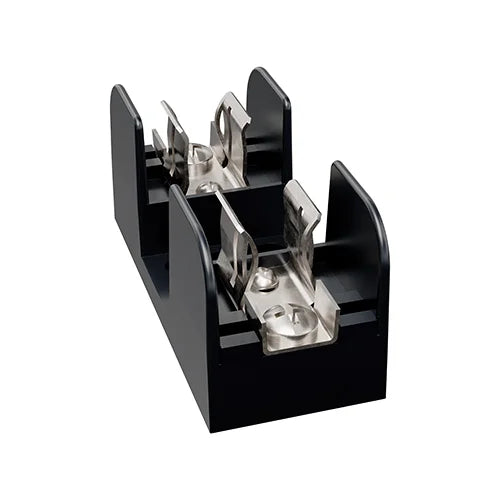

Mersen 20316 Fuse Block 250VAC/250VDC Class H/K 30A 1-Pole

Product Description

The MERSEN 20316 is a Class H, K fuse block that accommodates all Class H, K and R 250 and 600V power fuses. It features screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are molded glass-filled polycarbonate (GFPC).

• Rated for 250VAC and 250VDC
• Accepts Class H/K fuses
• Features a reinforced clip

Product Highlights

This fuse block is ideal for various applications requiring reliable overcurrent protection with Class H/K fuses.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 20316

Technical Specifications

• Item number: 20316
• Description: Fuse Block 250VAC 250VDC Class H/K 30A 1-Pole Screw with Reinforced Clip
• EAN/UPC Code: 782001757533
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class H/K
• Short Circuit Current Rating (SCCR): 50 kA
• Number of Poles: 1-Pole
• Fuse Installation Method: Clip-in
• Torque Rating: 20 lb-in
• Max Fuse Rating: 30 A
• Installation Mounting: Direct Screw Mount
• Product Width: 1.25 in
• Product Length: 3 in
• Product Height: 1.38 in
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• Product Weight: 0.14 lb
• Manufacturer: Ferraz Shawmut (Mersen)
• Material: GFPC
• Mounting Type: Threaded
• Number of Phases: 1
• Number Of Poles: 1
• Catalog ID: GOU20316
• Class: H
• Connection Type: Screw
• Dimensions: 3 in L x 1.25 in W x 1.38 in H

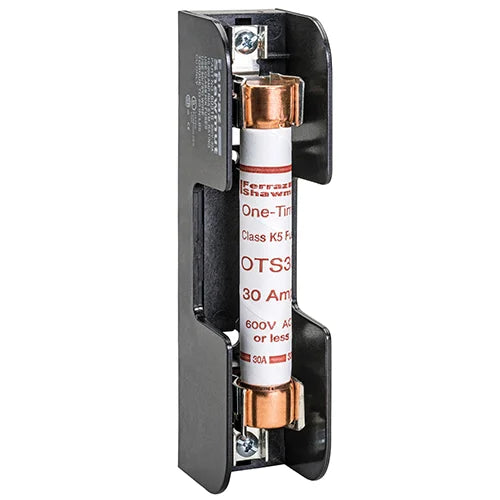

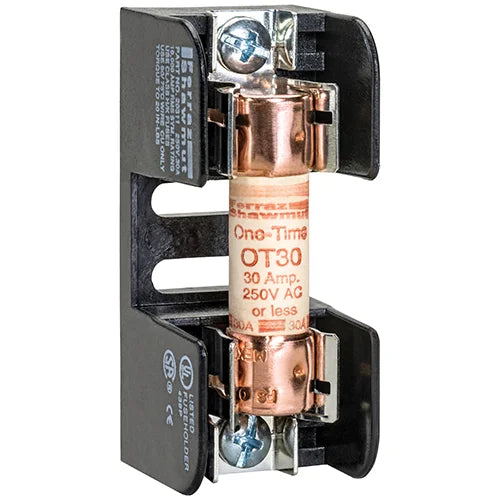

• Suitable For Use With: OT, RF, A2Y Types 1 and 3 OTN, CRN and NRN Fuses
• Type: Open Style
• Voltage Rating: 250 VAC/VDC
• Wire Size: 10 to 14 AWG Cu
• Standard & Approvals: UL 4248-12 (Class R), File E52283, CSA Certified C22.2, Class 6225, File 32187, RoHS Compliant
