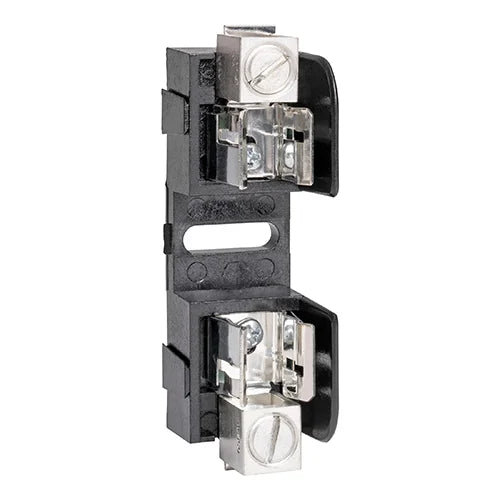

Mersen 20310 Fuse Block 250VAC 250VDC Class H/K 30A Adder Screw

Product Description

The MERSEN 20310 fuse block accommodates all Class H, K and R 250 and 600V power fuses. It features a choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are molded glass-filled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V.

• Accommodates Class H, K and R 250 and 600V power fuses
• Features screw, pressure plate, box and special order stud connectors
• Insulators are molded glass-filled polycarbonate (GFPC)

Product Highlights

The MERSEN 20310 fuse block is suitable for use with OT, RF, A2Y Types 1,3 OTN, CRN, NRN fuses.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: 20310

Technical Specifications

• Item number: 20310
• Description: Fuse Block 250VAC 250VDC Class H/K 30A Adder Screw
• EAN/UPC Code: 782001758141
• Rated voltage AC UL: 250 V
• Rated voltage DC UL: 250 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 30 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Class H/K
• Short Circuit Current Rating (SCCR): 50 kA
• Number of Poles: Adder
• Fuse Installation Method: Clip-in
• Torque Rating: 2.26 N m
• Max Fuse Rating: 30 A
• Installation Mounting: Direct Screw Mount
• Product Width: 23.1 mm
• Product Length: 76.2 mm
• Product Height: 35.1 mm
• Product group: Fuse Bases
• Body/Insulating Material: Glass Filled Polycarbonate
• Class: H/K
• UNSPSC: 39121624
• Material: GFPC
• Wire Size: 14 to 10
• Mounting Type: Threaded
• Voltage Rating: 250
• Connection Type: Non-Reinforced Screw
• Number of Phases: 1
• Type: Adder Pole Open Style
• Suitable For Use With: OT, RF, A2Y Types 1,3 OTN, CRN, NRN Fuse
• Category: Circuit Protection
• Fuseholders: Fuseholders
• Series: *
• Packaging: Bulk
• Part Status: Active
