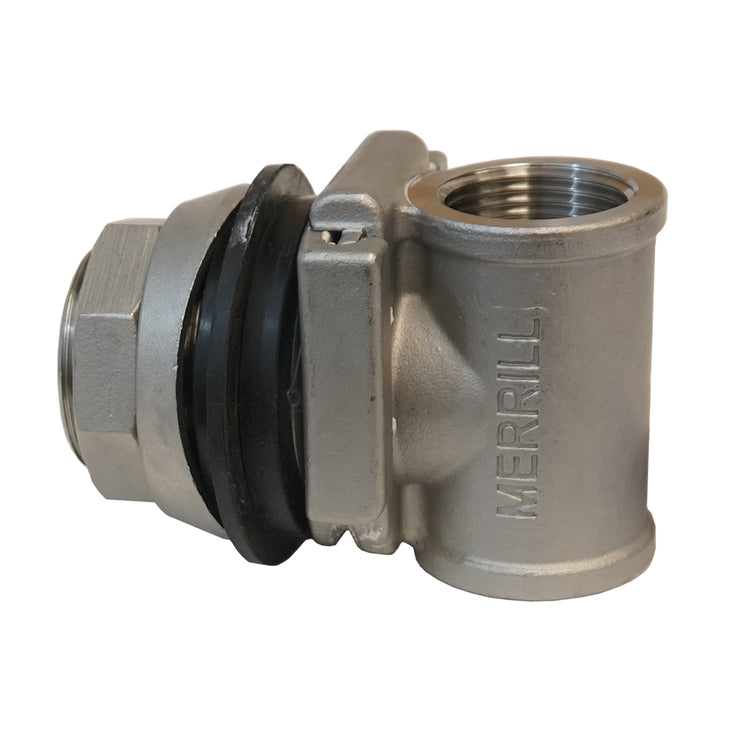

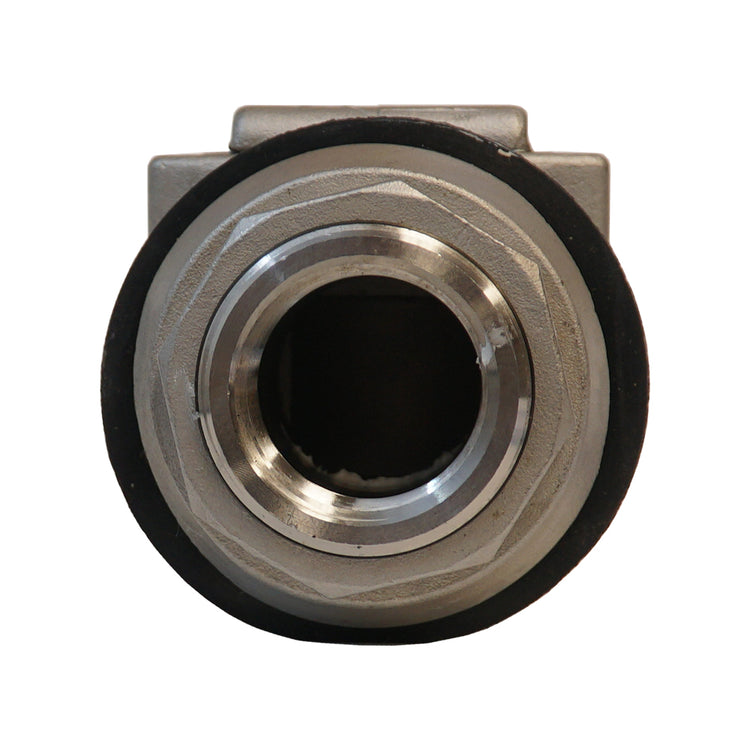

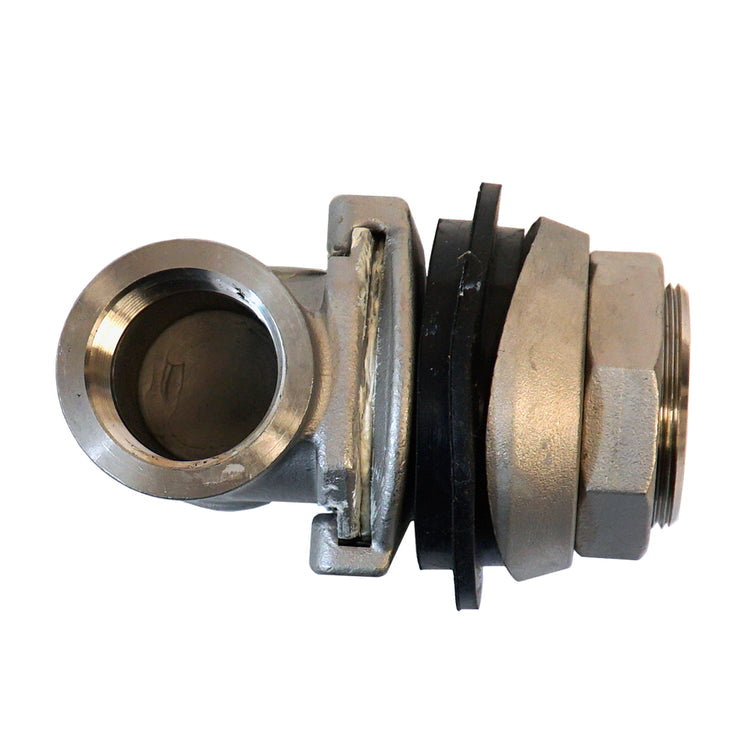

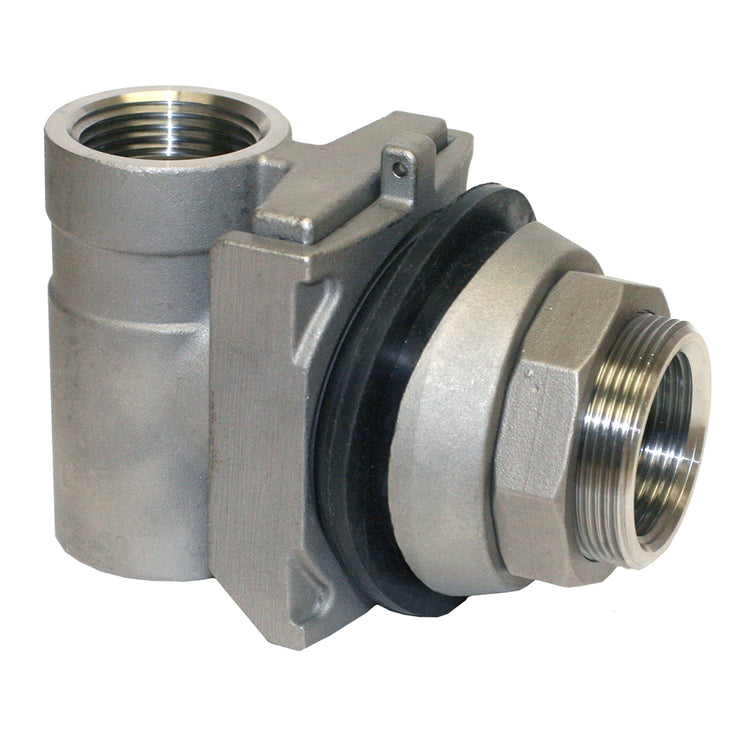

Merrill Mfg SSMB225 Pitless Adapter 1-1/4 inches Drop x 1-1/4 inches Discharge

Product Description

The Merrill MFG SSMB225 pitless adapter creates a secure, frost-proof connection for larger pumps. Engineered for 1-1/4" drop pipe and 1-1/4" discharge on 5–8" well casings. Constructed from heavy-duty 304 stainless steel to resist corrosion in demanding groundwater environments. This adapter is rated to support up to 800 feet of schedule 40 steel pipe.

• Bottom of the Male Part and the Top of the Female are Tapered- Seemless connection and easy removal
• Replaceable O-Ring Seal - Easily replaced, not a factory only seal
• Molded Gasket - Positive outside seal around discharge, plus O-Ring or gasket glued in place for the seal around inside of the casing

Product Highlights

The SSMB225 pitless adapter features a two-piece slide-together design that forms a watertight 90° connection below the frost line. Ideal for residential, farm, and light commercial well systems.

Product Information

Standard Information

• Brand: MERRILL MFG
• Manufacturer Part Number: SSMB225

Technical Specifications

• Size: 1-1/4" Drop Pipe & Discharge
• Material: 304 Stainless Steel
• Brand: Merrill
• Connector Type: Adapter
• Thread Size: 1.25 inch
• Thread Type: NPT
• Series: 200
• Specifications: 1-1/4 in NPT
• Suitable For Use With: 800 ft SCH 40 Steel Pipe
