Merrill Manufacturing MPSHD3050 No-Lead Heavy Duty Pressure Switch 115/230V (1 Pack) Replacement MPSHD3050

Product Description

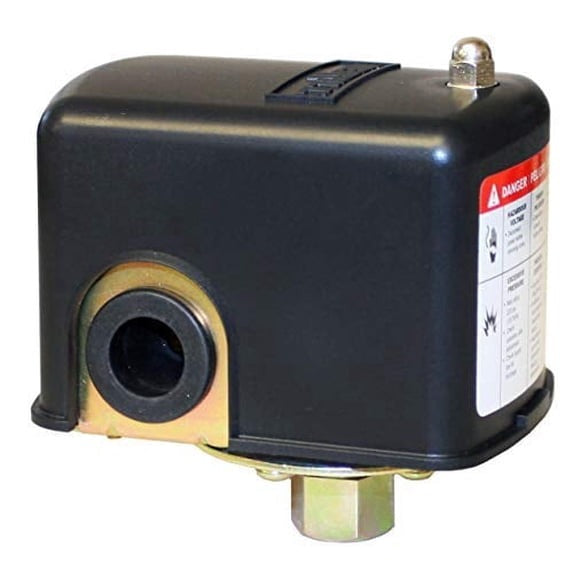

The Merrill Manufacturing MPSHD3050 is a no-lead heavy-duty pressure switch with a preset 30/50 psi band that controls electrically driven water pumps by initiating pump start at 30 psi and stopping at 50 psi. The switch operates in an on-off mode, supports 115 V and 230 V systems, and is rated for 2 HP (1-phase) at 230 V while remaining usable on 115 V. It includes extra-large silver contacts and a 1/4" female NPT connection.

• Preset pressure band: 30 psi cut-in and 50 psi cut-out (adjustable)
• Electrical compatibility: 115 V and 230 V; 1-phase horsepower rating 2 HP at 230 V (usable on 115 V)

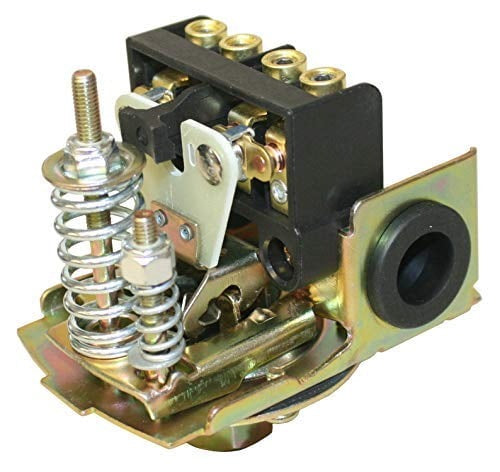

• Hardware: extra-large silver contacts, heavy brass wire connections with stainless steel set screws, 1/4" female NPT connection

Product Highlights

No-lead heavy-duty pressure switch, 30/50 psi band, 115/230V compatibility, 1/4" female NPT connection

Product Information

Standard Information

• Brand: MERRILL MANUFACTURING
• Manufacturer Part Number: MPSHD3050
• Country of Origin: United States
