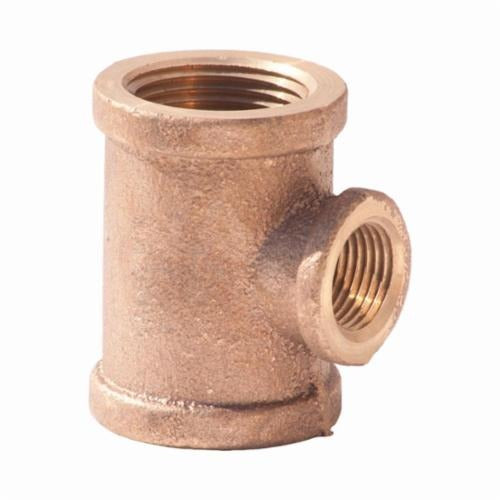

Merit Brass XNL106-242416 Brass Reducer Tee Fnpt 125 Lb

Product Description

The MERIT BRASS XNL106-242416 is a brass pipe reducer tee designed for use in threaded piping systems requiring a branch reduction. The fitting connects 1-1/2 inch run ports to a 1 inch branch outlet using female National Pipe Taper (FNPT) threads on all three ends. Rated at 125 lb, this tee is suitable for low-pressure fluid and gas piping applications. The rough brass finish is standard for this class of fitting. Licensed plumbers and pipefitters install this type of reducer tee where a main line must branch off at a reduced pipe size without additional bushings or adapters.

This reducer tee is used in residential and light commercial plumbing, hydronic heating, compressed air distribution, and general fluid handling systems. It is well suited for installations where a 1-1/2 inch main run needs to feed a 1 inch branch line in a single fitting. The FNPT thread pattern is compatible with standard NPT-threaded pipe and fittings across these applications. Import construction meets the dimensional standards expected for 125 lb rated brass fittings.

Key Features

• Reducer tee configuration: 1-1/2 x 1-1/2 x 1 inch nominal sizing
• FNPT threads on all three ends for standard NPT pipe compatibility
• 125 lb pressure class rating for low-pressure piping service
• Brass construction provides corrosion resistance in fluid and air systems
• Rough finish suitable for direct installation without additional preparation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for threaded brass piping systems using standard NPT connections at 125 lb pressure class.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable IPC and local plumbing code requirements. Shut off and depressurize the piping system fully before removing or installing any threaded fittings. Apply thread sealant tape or compound to the male threads of mating pipe or fittings before assembly. Do not overtighten FNPT connections, as brass threads can be damaged by excessive torque.

Technical Specifications

• Nominal Size: 1-1/2 x 1-1/2 x 1 inches
• End Style: FNPT (Female National Pipe Taper) all ends
• Pressure Class: 125 lb
• Material: Brass
• Finish: Rough
• Origin: Import

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: XNL106-242416
