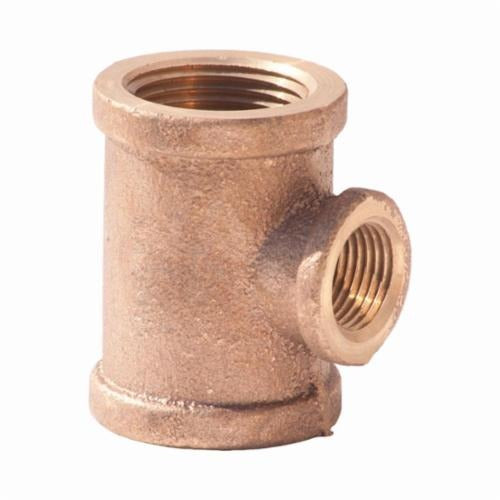

Merit Brass XNL106-242412 Brass Reducer Tee Fnpt 125 Lb

Product Description

The MERIT BRASS XNL106-242412 is a brass pipe reducer tee designed for threaded pipe systems requiring a branch reduction. Sized at 1-1/2 x 3/4 x 1-1/2 inches nominal with Female National Pipe Taper (FNPT) end connections on all three ports, this fitting handles a 125 lb pressure class rating. Constructed from brass with a rough finish, it provides reliable flow splitting or combining in systems where the branch run requires a smaller pipe diameter than the main run. Plumbers and pipefitters install this type of fitting in both supply and distribution piping assemblies.

This reducer tee is suited for residential and light commercial plumbing applications where a main 1-1/2 inch line requires a 3/4 inch branch takeoff. Typical installations include water distribution, compressed air lines, and similar low-to-medium pressure threaded pipe systems. The FNPT thread pattern on all ports accepts standard NPT male-threaded pipe or fittings, making integration into existing threaded systems straightforward.

Key Features

• 1-1/2 x 3/4 x 1-1/2 inch nominal sizing with branch reduction on the center port
• FNPT end style on all three ports for compatibility with standard NPT male-threaded pipe
• 125 lb pressure class rating for light-to-medium pressure service
• Brass construction offers corrosion resistance in water and air service
• Rough finish suitable for standard threaded pipe assemblies

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch nominal NPT threaded pipe systems requiring a 3/4 inch branch outlet.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC or local plumbing code requirements. Shut off and depressurize the system completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male NPT threads before assembly, and tighten to hand-tight plus the appropriate number of turns per pipe size without overtightening, which can crack the fitting body. Do not exceed the rated 125 lb pressure class for the intended service.

Technical Specifications

• Nominal Size: 1-1/2 x 3/4 x 1-1/2 inches
• End Style: FNPT (Female National Pipe Taper)
• Pressure Class: 125 lb
• Material: Brass
• Finish: Rough
• Origin: Import

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: XNL106-242412
