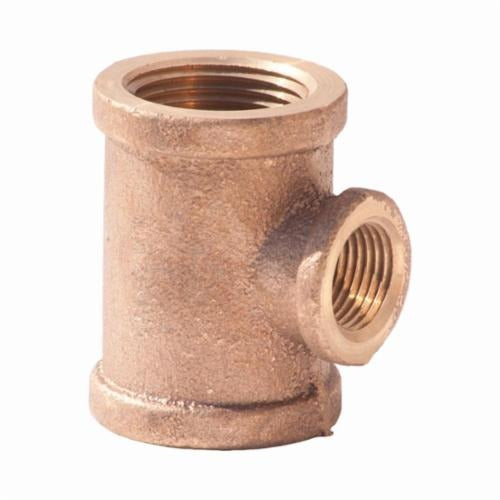

Merit Brass XNL106-161612 Brass Reducer Tee 1x1x3/4 in

Product Description

The MERIT BRASS XNL106-161612 is a brass pipe reducer tee designed for splitting or combining flow in threaded pipe systems while reducing one branch to a smaller nominal size. It features a 1 x 1 x 3/4 inch nominal configuration with female NPT (FNPT) threads on all three ports and is rated at 125 lb pressure class. The rough brass finish indicates an unpolished, as-cast exterior suitable for concealed or utility installations. Plumbers and pipefitters install this fitting in low-to-moderate pressure water, gas distribution, and general service piping systems.

This reducer tee is suited for residential and light commercial plumbing applications where a main run of 1 inch nominal pipe requires a 3/4 inch branch takeoff. Typical install scenarios include water distribution manifolds, supply line branches, and general-purpose fluid handling systems where threaded connections are specified. The FNPT end style allows direct makeup with standard NPT male-threaded pipe or fittings.

Key Features

• 1 x 1 x 3/4 inch nominal size reduces one branch port for split-flow or branch-line installations
• Female NPT threads on all three ports for standard threaded pipe makeup
• 125 lb pressure class rating suitable for low-to-moderate pressure service
• Brass construction provides corrosion resistance in water and compatible fluid service
• Rough finish exterior for utility and concealed piping installations

Compatibility

Designed as an OEM-style threaded brass reducer tee for use with standard NPT-threaded pipe and fittings in residential and light commercial plumbing and fluid distribution systems.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the supply line before removing existing fittings or making new connections. Apply thread sealant tape or pipe compound to male NPT threads before makeup. Do not over-torque brass fittings, as the material is softer than iron or steel and susceptible to thread damage.

Technical Specifications

• Nominal Size: 1 x 1 x 3/4 inches
• End Style: FNPT (Female NPT) all three ports
• Pressure Class: 125 lb
• Material: Brass
• Finish: Rough

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: XNL106-161612
