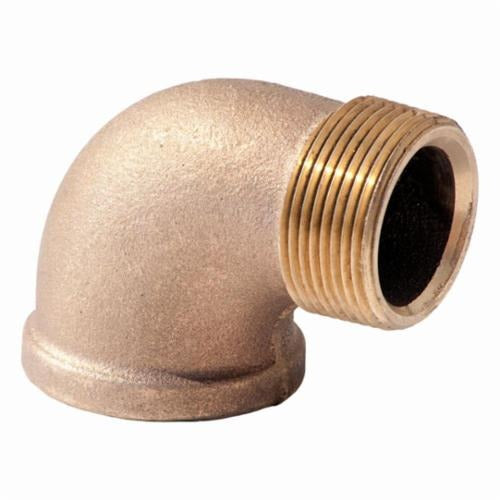

Merit Brass XNL103-24 Street Elbow 1-1/2 in Mnpt X Fnpt 125 Lb

Product Description

The MERIT BRASS XNL103-24 is a 1-1/2 inch nominal brass street elbow designed to redirect flow in low-pressure piping systems. It features a male NPT (MNPT) inlet and a female NPT (FNPT) outlet, allowing direct connection without a separate coupling. Rated at 125 lb, this elbow is suited for water, air, oil, and general-service fluid applications. The rough brass finish is standard for utility plumbing work where appearance is not a factor. Plumbers and pipefitters install this fitting in residential and light commercial systems where a compact directional change is needed.

This street elbow is used in residential and light commercial plumbing, compressed air distribution, and general fluid-handling systems. The MNPT x FNPT configuration makes it a space-saving alternative to a standard elbow paired with a separate nipple. It is well-suited for close-quarters installations where fitting stack-up must be minimized. Licensed plumbers install this type of fitting in supply lines, distribution manifolds, and service connections.

Key Features

• 1-1/2 inch nominal size for high-flow utility piping applications
• MNPT x FNPT end style allows direct street installation without an additional nipple
• 125 lb pressure rating suitable for water, air, and general-service fluids
• Brass construction resists corrosion in wet and humid environments
• Rough finish is standard for concealed or utility-grade installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch NPT threaded piping systems in residential and light commercial plumbing and fluid-handling applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off and depressurize the supply line before removing or installing any threaded fittings. Apply thread sealant tape or paste to the male threads before assembly, and tighten to hand-snug plus an appropriate number of turns using pipe wrenches — do not over-tighten brass fittings, as the material is subject to cracking under excessive torque. Inspect the connection for leaks after restoring system pressure.

Technical Specifications

• Nominal Size: 1-1/2 inches
• End Style: MNPT x FNPT
• Pressure Rating: 125 lb
• Material: Brass
• Finish: Rough
• Origin: Import

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: XNL103-24
