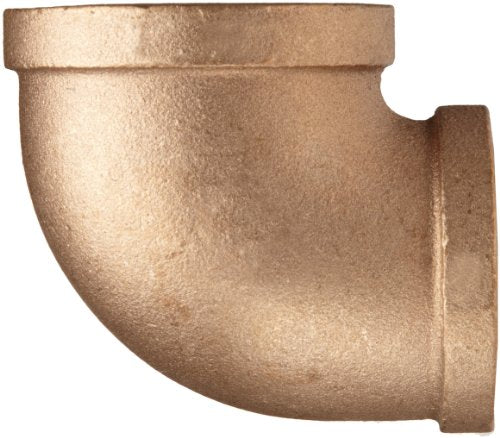

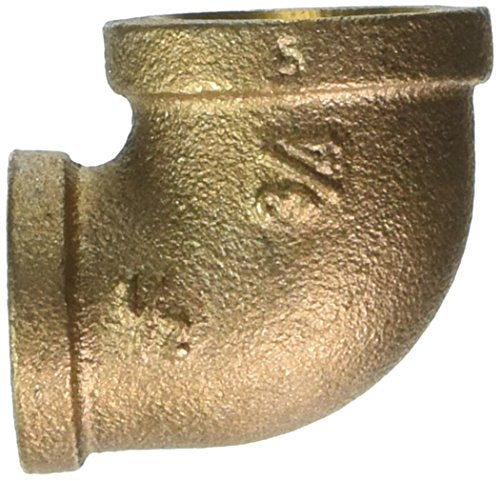

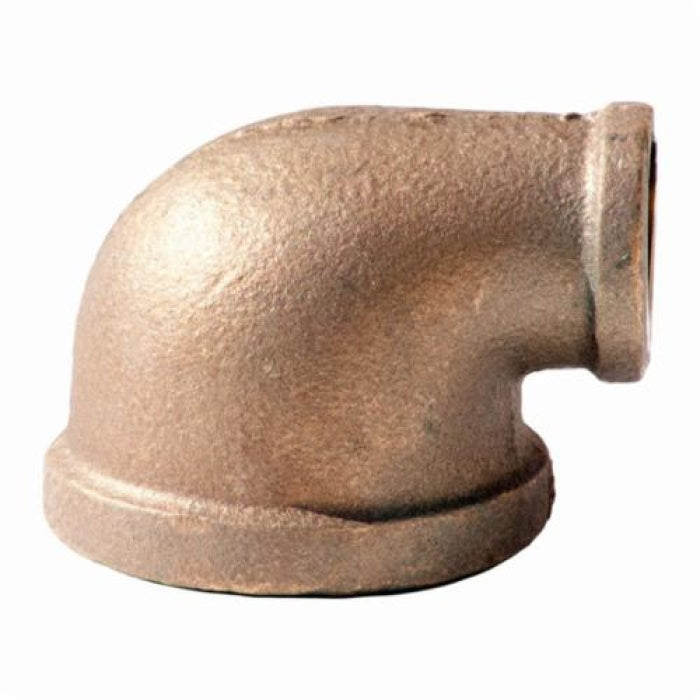

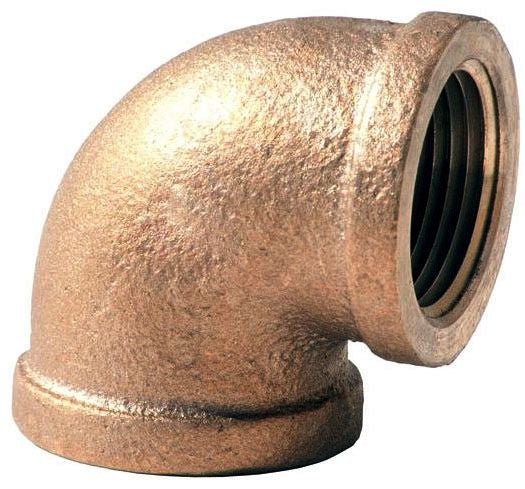

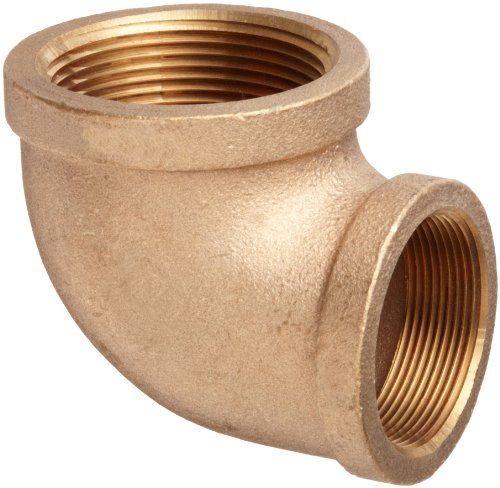

Merit Brass xnl101-1208 90 deg Pipe Reducer Elbow, 3/4 x 1/2 in Nominal, fnpt End

Product Description

The Merit Brass XNL101-1208 pipe reducer elbow is lead-free with a 90-degree angle and is designed to connect two different sized pipes. It features female National Pipe Taper (NPT) threads. It is comparable in strength to stainless steel and more corrosion resistant. It meets standards ASTM B-584-06, ANSI B 1.20.1, and ANSI B 16.15.

• Lead free
• 90-degree reducing elbow design
• Female National Pipe Taper (NPT) threads

Product Highlights

This 90-degree reducing elbow is suitable for connecting different sized pipes and is corrosion resistant.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: XNL101-1208
• Country of Origin: Import

Technical Specifications

• End Style: FNPT
• Finish: Rough
• Fitting/Connector Type: 90 deg Elbow
• Material: Brass
• Nominal Size: 3/4 x 1/2 in
• Pressure Class: 125 lb
• Pressure Rating: 125 to 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 400 deg F
• Fitting Type: 90-degree reducing elbow
• Thread Type: Female National Pipe Taper (NPT)
• Class: 125
• Standards Met: ASTM B-584-06 (C89833), ANSI B 1.20.1, and ANSI B 16.15
• Pressure Ratings: 125 psi for steam and 200 psi for water, oil, and gas (W.O.G.)
• Size: 3/4" x 1/2"
• Connection: Female National Pipe Taper (NPT) threads
• Application: Chemical, Brewery, Food and Beverage, HVAC, Commercial Plumbing, Petro-Chemical, Residential Plumbing, OEM Manufacturing, Water Treatment, Power Generation, Pharmaceutical, Pulp and Paper, Aerospace, Computer, Marine, Waterwork
• Angle: 90 Degree
• End Connection: Female Threaded x Female Threaded
• Process: Cast
• Size A: 3/4 Inch
• Size B: 1/2 Inch
• Type: Reducing
• VENDOR Product No: XNL101-1208
