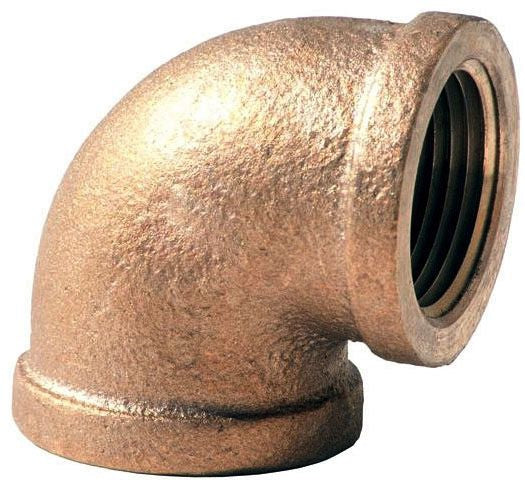

Merit Brass xnl101-0804 Reducing Brass 90 Elbow 1/2x1/4 Fpt

Product Description

The MERIT BRASS xnl101-0804 is a lead-free, reducing 90-degree elbow fitting designed for threaded plumbing connections. Manufactured from brass, it transitions from a 1/2-inch female pipe thread (FPT) inlet to a 1/4-inch FPT outlet, allowing a right-angle directional change while stepping down pipe size in a single fitting. Rated to 125 PSI, this elbow suits residential and light commercial plumbing, HVAC condensate lines, compressed air systems, and potable water supply applications where lead-free compliance is required. Licensed plumbers and pipefitters are the typical installers.

This reducing elbow is suited for installations where a 90-degree turn and a simultaneous pipe size reduction are needed in a single connection point. It is commonly used in water supply lines, distribution manifolds, and equipment connections in both residential and commercial settings. The FPT x FPT configuration threads onto male-threaded pipe or fittings on both ends. Its compact brass body makes it practical for tight spaces where two separate fittings would be difficult to accommodate.

Key Features

• Lead-free brass construction meets requirements for potable water applications
• Reduces from 1/2-inch to 1/4-inch in a single 90-degree fitting
• FPT x FPT connection on both ends for standard threaded pipe compatibility
• 125 PSI pressure rating suitable for residential and light commercial use
• Compact elbow design for installations with limited clearance

Compatibility

Designed as an OEM-style replacement or new-installation fitting for threaded plumbing systems using 1/2-inch and 1/4-inch female pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off water supply and relieve system pressure before removing or installing any threaded fitting. Apply thread sealant tape or pipe dope to the male threads before engagement. Do not overtighten, as brass threads can be damaged by excessive torque.

Technical Specifications

• Fitting Material: Brass
• Fitting Size: 1/2 inches x 1/4 inches
• Connection Type: FPT x FPT
• Elbow Degree: 90
• Type: Reducing
• Pressure Rating: 125 psi
• Lead Free: Yes

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: xnl101-0804
