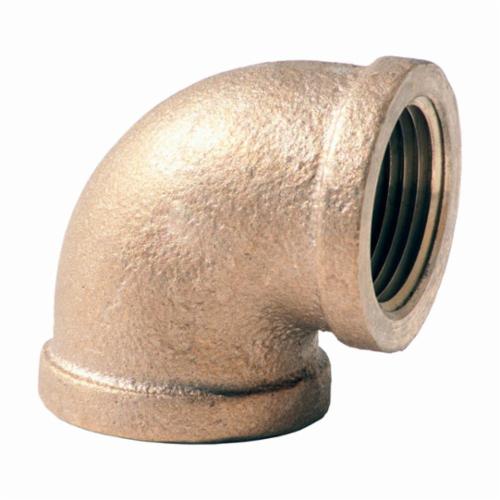

Merit Brass XNL101-04 90 Deg Pipe Elbow 1/4 In Nominal FNPT End Style 125 lb

Product Description

The Merit Brass XNL101-04 is a 90-degree pipe elbow designed for applications requiring a nominal quarter-inch (1/4 in) connection with FNPT ends. This lead-free fitting is constructed from brass, making it suitable for low-pressure applications. It supports pressures ranging from one hundred twenty-five to two hundred psi and is compatible with standard and schedule 40 piping systems. The temperature tolerance spans from negative twenty to four hundred degrees Fahrenheit.

• Lead-free material
• Pressure rated up to 200 psi
• Suitable for temperatures from -20 to 400 degrees F

Product Highlights

This fitting is ideal for plumbing setups involving water, gas, and oil. The brass construction provides corrosion resistance and ensures a durable long-term connection.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: XNL101-04

Technical Specifications

• Material: Brass
• End Style: FNPT
• Connection Size: 1/4 in
• Pressure Class: 125 lb
• Pressure Rating: 125 to 200 psi
• Temperature Rating: -20 to 400 deg F
• Fitting/Connector Type: 90 deg Elbow
• Schedule Rating: SCH 40/STD
