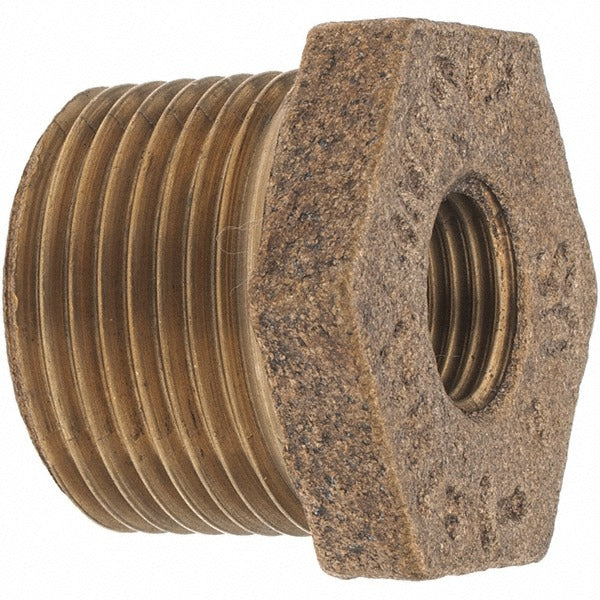

Merit Brass XB114-1204 Brass Pipe Bushing 3/4x1/4 Fbspt

Product Description

The MERIT BRASS XB114-1204 is a threaded brass pipe bushing designed to reduce a 3/4-inch female pipe thread to a 1/4-inch female pipe thread within a plumbing or fluid-handling system. It features male BSP taper threads on the larger end and female BSP taper threads on the smaller end, conforming to Class 125 pressure ratings. This bushing is a standard close-pattern fitting used by licensed plumbers and pipefitters to adapt pipe sizes at a threaded connection without additional fittings. Its brass construction resists corrosion in water, air, and compatible fluid service applications.

This bushing suits residential and light commercial plumbing systems, compressed air lines, and general fluid distribution where a 3/4-inch to 1/4-inch threaded size reduction is required. It is commonly installed at equipment ports, valve inlets, gauge connections, and manifold assemblies. The FBSPT x FBSPT end configuration accommodates tapered male pipe threads on both mating components, making it straightforward to incorporate into existing threaded pipe runs.

Key Features

• 3/4-inch to 1/4-inch size reduction in a single close-pattern bushing
• Threaded MBSPT x FBSPT end connections for a pressure-tight tapered seat
• Class 125 pressure rating suitable for standard service lines
• Brass construction provides corrosion resistance for water, air, and compatible fluid media
• Compact close-pattern design minimizes overall installed length

Compatibility

Designed as an OEM-style replacement or direct-install fitting for threaded pipe systems requiring a 3/4-inch to 1/4-inch BSP taper reduction at Class 125 service conditions.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following applicable IPC and local plumbing code requirements. Shut off and depressurize the line completely before removing or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to the male threads before assembly to ensure a leak-free joint. Do not overtighten brass fittings, as brass threads can deform under excessive torque.
