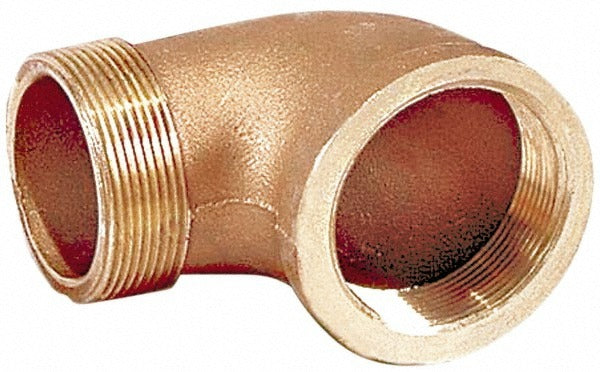

Merit Brass XB103-32 Brass 90 Street Elbow 2in Class 125

Product Description

The MERIT BRASS XB103-32 is a 2-inch brass 90-degree street elbow designed for threaded pipe systems. It connects female British Standard Pipe Taper (FBSPT) to male British Standard Pipe Taper (MBSPT) ends, making it a true street configuration that eliminates the need for a nipple between fittings. Rated Class 125, this elbow handles standard-pressure service in water, gas, and general plumbing applications. Plumbers and pipefitters install it where a 90-degree directional change is required in a threaded brass line.

This fitting is suited for residential and light commercial plumbing, HVAC condensate and water supply lines, and general industrial piping where brass construction is specified. The street elbow configuration — FBSPT inlet and MBSPT outlet — allows it to thread directly into another fitting socket without an intermediate pipe section, saving space in tight installations. It is commonly used in water distribution, compressed air, and low-pressure gas piping systems.

Key Features

• 2-inch fitting size for standard pipe systems
• 90-degree street elbow configuration for compact directional changes
• FBSPT x MBSPT threaded ends for direct fitting-to-fitting connections
• Class 125 pressure rating for standard-service applications
• Brass construction for corrosion resistance in water and gas service

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch threaded brass pipe systems using FBSPT x MBSPT connections rated to Class 125 service.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable IPC or IFGC codes. Shut off and depressurize the line before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten; use a pipe wrench with a backup wrench on the mating fitting to avoid stressing connected components.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
