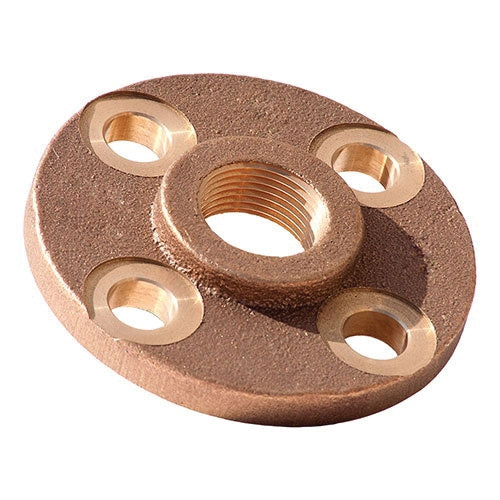

Merit Brass X235-64 Companion Flange Class 150 4 in FNPT

Product Description

The Merit Brass X235-64 is a companion flange. It connects pipes easily. The flange has a nominal size of four inches with a female national pipe thread connection type. This product is suitable for various plumbing applications.

• Class 150 pressure rating
• Made of red brass
• Certified to ASME B 16.24-1991, MSS SP-25, SP-9, SP-6 standards

Product Highlights

The Merit Brass X235-64 is ideal for reliable pipe connections in plumbing systems. Its durable construction ensures long-lasting performance.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Item Name: Companion Flange
• Connection Size: 4 in
• Connection Type: FNPT
• Pressure Class: Class 150
• Outside Diameter: 9 in
• Thickness: 0.69 in
• Length Through Hub: 1.31 in
• Bolt Circle Diameter: 7-1/2 in
• Bolt Hole Diameter: 3/4 in
• Number of Bolts: 8
• Material: Red Brass
• Material Specifications: ASTM B584/C83600
• Standards/Certifications: ASME B 16.24-1991, MSS SP-25, SP-9, SP-6 certified
