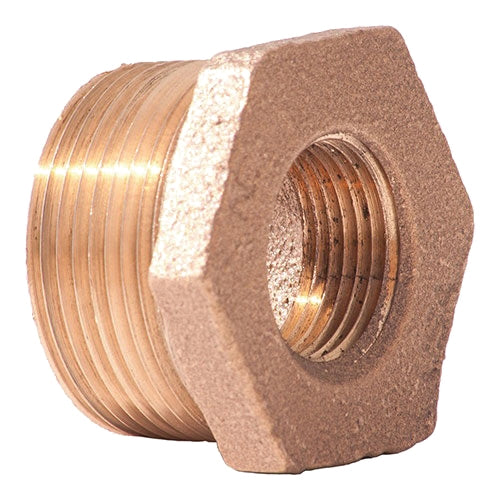

Merit Brass X114-0804 Hex Bushing, 1/2 x 1/4 in, MNPT x FNPT, Class 125

Product Description

The Merit Brass X114-0804 is a hex bushing designed for pipe fittings applications. This product features a connection size of one half inch by one quarter inch and is designed for use in various plumbing tasks. The end connections are MNPT and FNPT for secure fittings.

• Connection Size: 1/2 x 1/4 inches
• Material: Red Brass
• Pressure Rating: 125 psi

Product Highlights

The Merit Brass hex bushing is ideal for connecting different pipe sizes in plumbing and heating systems. It is suitable for various industrial applications where reduced size fittings are necessary.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: X114-0804

Technical Specifications

• Material: Red Brass
• Connection Type: MNPT x FNPT
• Length: Three fourths inches
• Pressure Class: Class 125
• Temperature Rating: -20 to 400 degrees Fahrenheit
• Manufacturing Method: Cast
• Material Specifications: ASTM B584, ASTM B62, C83600
• Standards/Certifications: ANSI/ASME B16.15, ANSI/ASME B1.20.1
