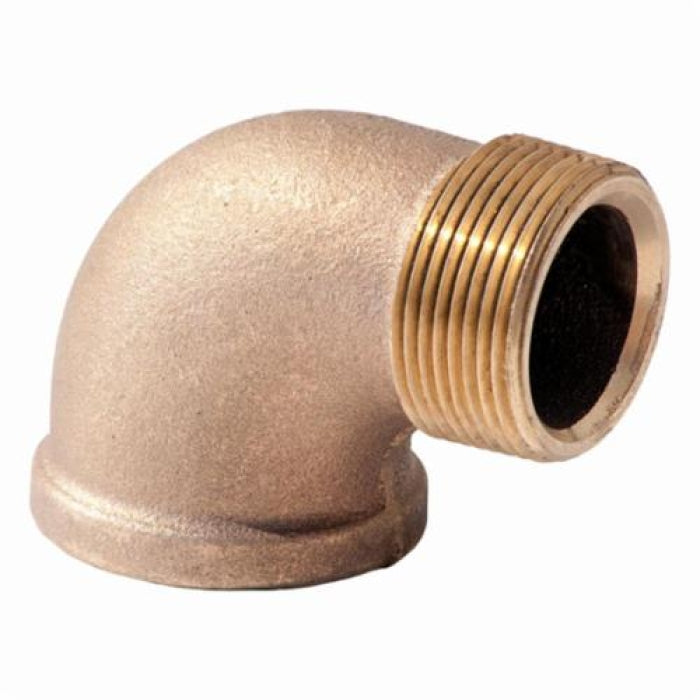

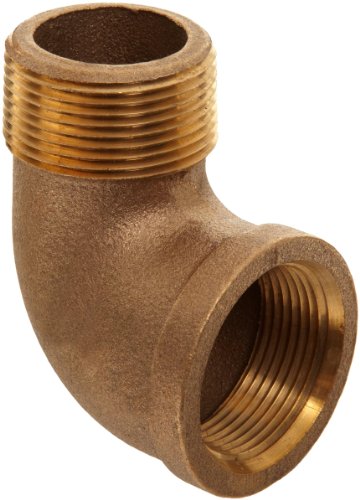

Merit Brass X103-40 Street Elbow 90 Degree 2-1/2 NPT Male x 2-1/2 NPT Female

Product Description

The Merit Brass X103-40 is a 90-degree street elbow fitting. It features female National Pipe Taper (NPT) threads on one end and male NPT threads on the other. This design allows it to connect various pipes and fittings easily. The 90-degree elbow is essential for changing the direction of flow in piping systems.

• Contains lead; not for potable water use in the U.S. and territories.
• Compatible with different types of pipes due to male and female NPT threads.
• Made from brass, offering machinability and corrosion resistance.

Product Highlights

This fitting is used in numerous industries for connecting, terminating, controlling flow, and altering the direction of piping. It meets several quality standards for reliable use.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• MPN: X103-40
• Material: Brass
• Nominal Size: 2-1/2 inches
• Pressure Class: 125 lb
• Pressure Rating: 125 to 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 400 degrees Fahrenheit
• End Style: MNPT x FNPT
