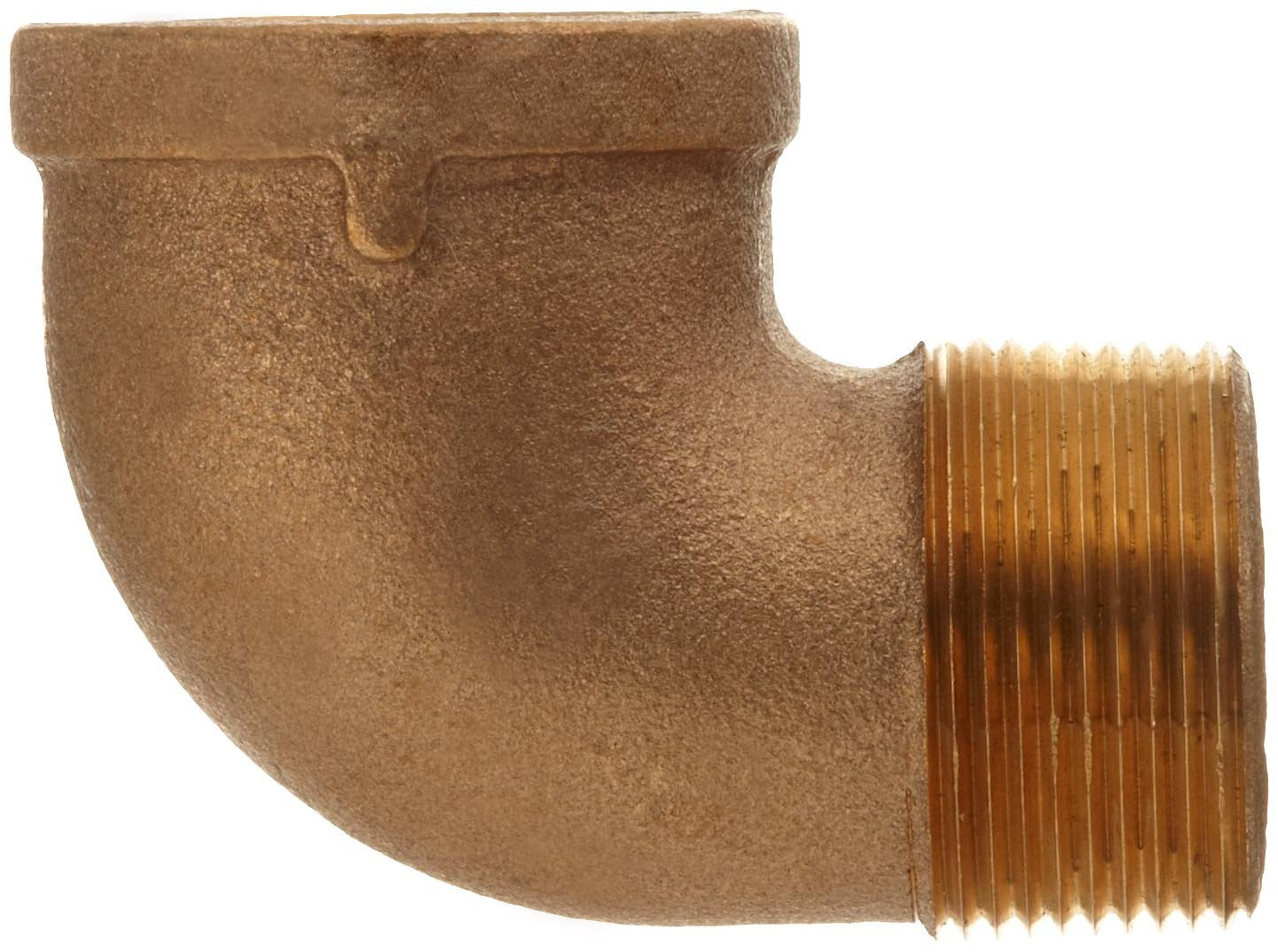

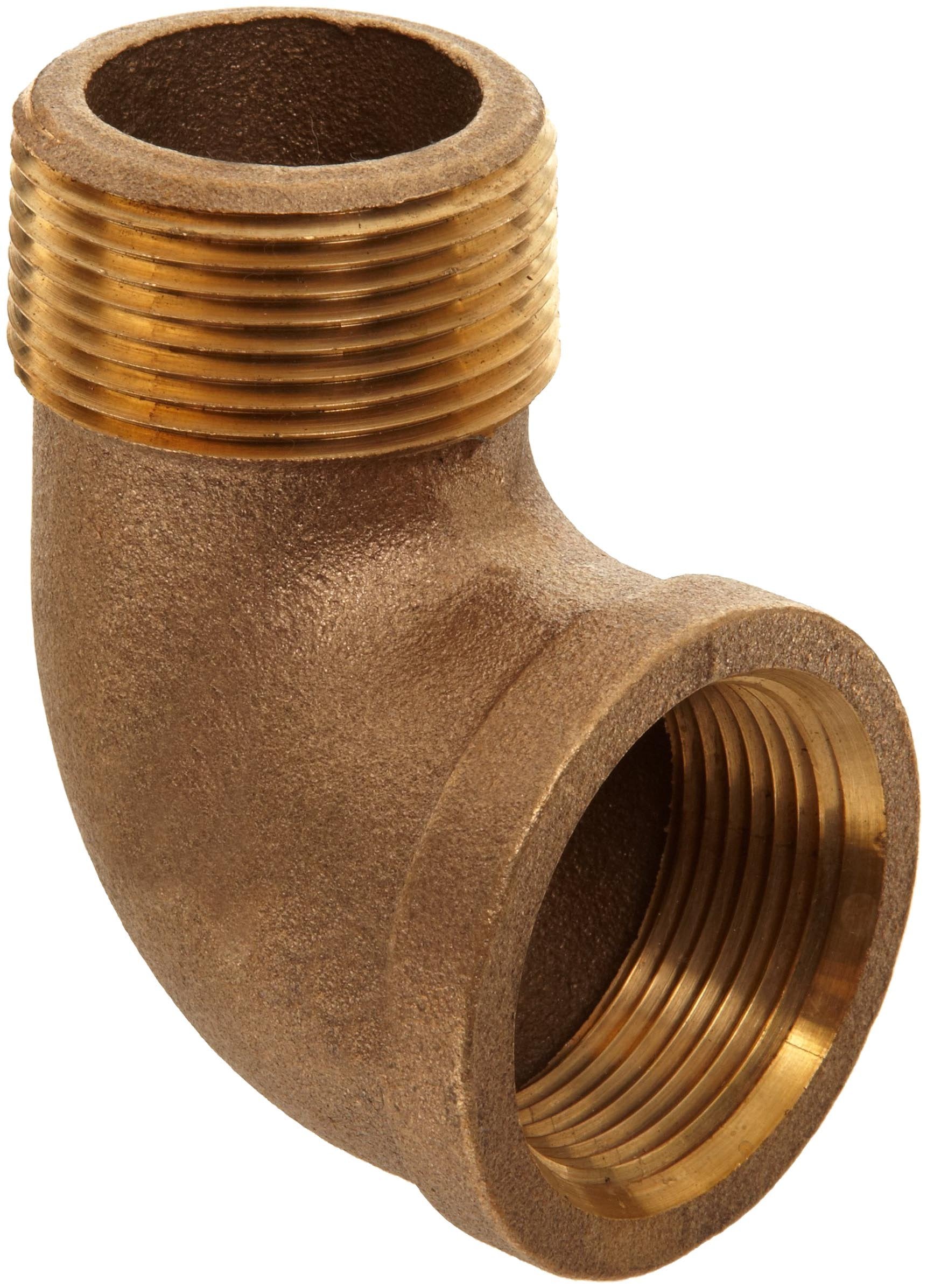

Merit Brass X103-20 Brass Pipe Fitting Class 125 90 Degree Elbow 1-1/4 NPT Male x 1-1/4 NPT Female

Product Description

Merit Brass offers the X103-20, a brass pipe fitting used for connecting various pipes and fittings. This fitting features a 90-degree elbow shape and comes with female National Pipe Taper (NPT) threads on one end and male NPT threads on the other. It changes the flow direction between pipes and has threads that create tighter seals compared to straight threads. It is constructed from class 125 brass, which is economical and provides corrosion resistance. The X103-20 complies with standards such as ANSI/ASME B16.15, ASME B1.20.1, ASTM B584, and ALLOY C83600, ensuring quality and reliability.

• Lead content is regulated and cannot be used for potable water in the U.S.
• Compatible with multiple types of pipes due to its NPT threading.
• Constructed from brass for improved machinability and durability.

Product Highlights

This product is suitable for various industrial and plumbing applications where direction change in piping is needed.

Product Information

Standard Information

• Manufacturer: Merit Brass
• Model / MPN: X103-20

Technical Specifications

• Nominal Size: 1-1/4 inches
• Pressure Class: 125 lb
• Pressure Rating: 125 to 200 psi
• Temperature Rating: -20 to 400 degrees Fahrenheit
• End Style: MNPT x FNPT
• Fitting Type: 90-degree elbow
• Material: Brass
• Domestic/Import: Import
