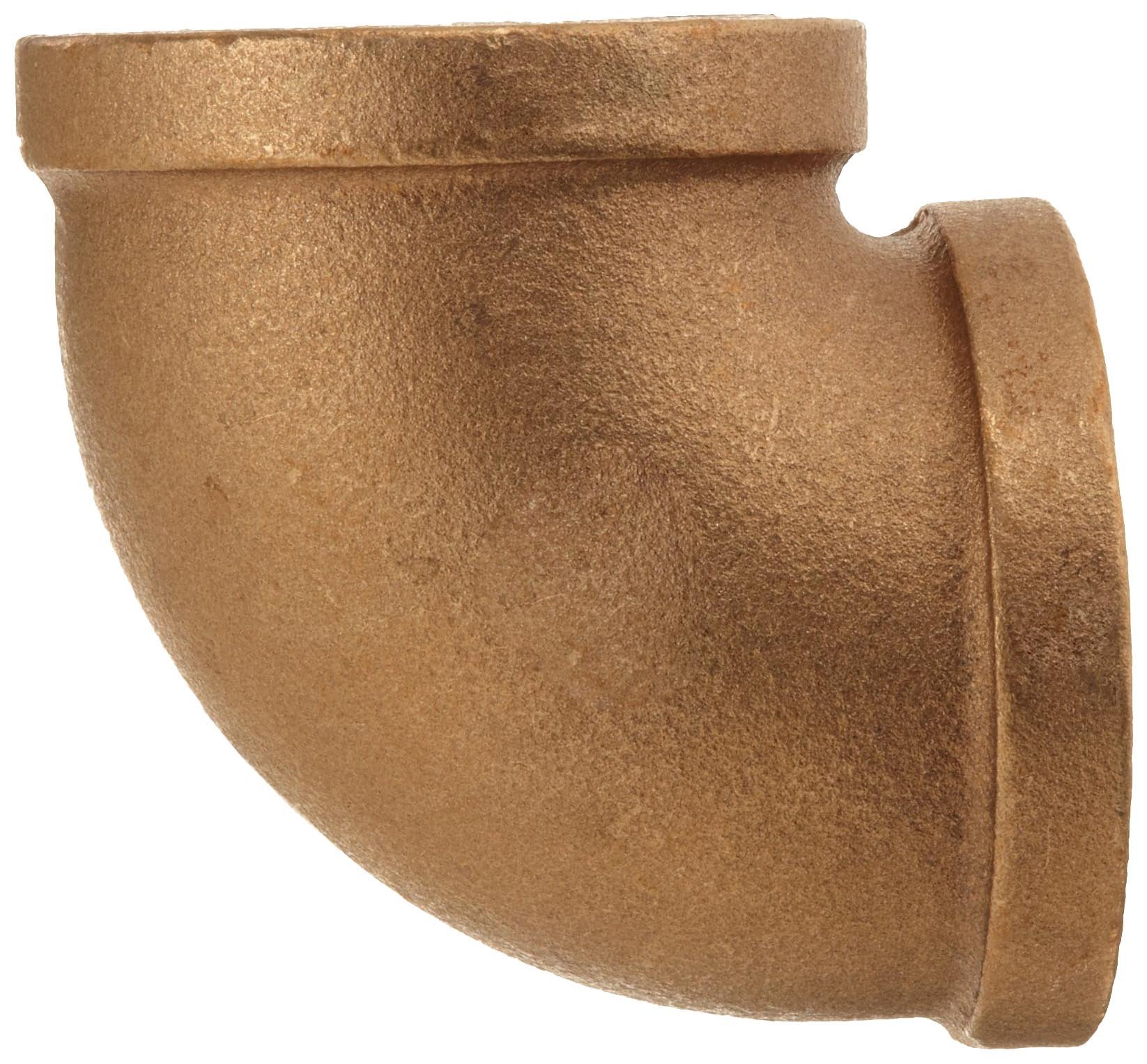

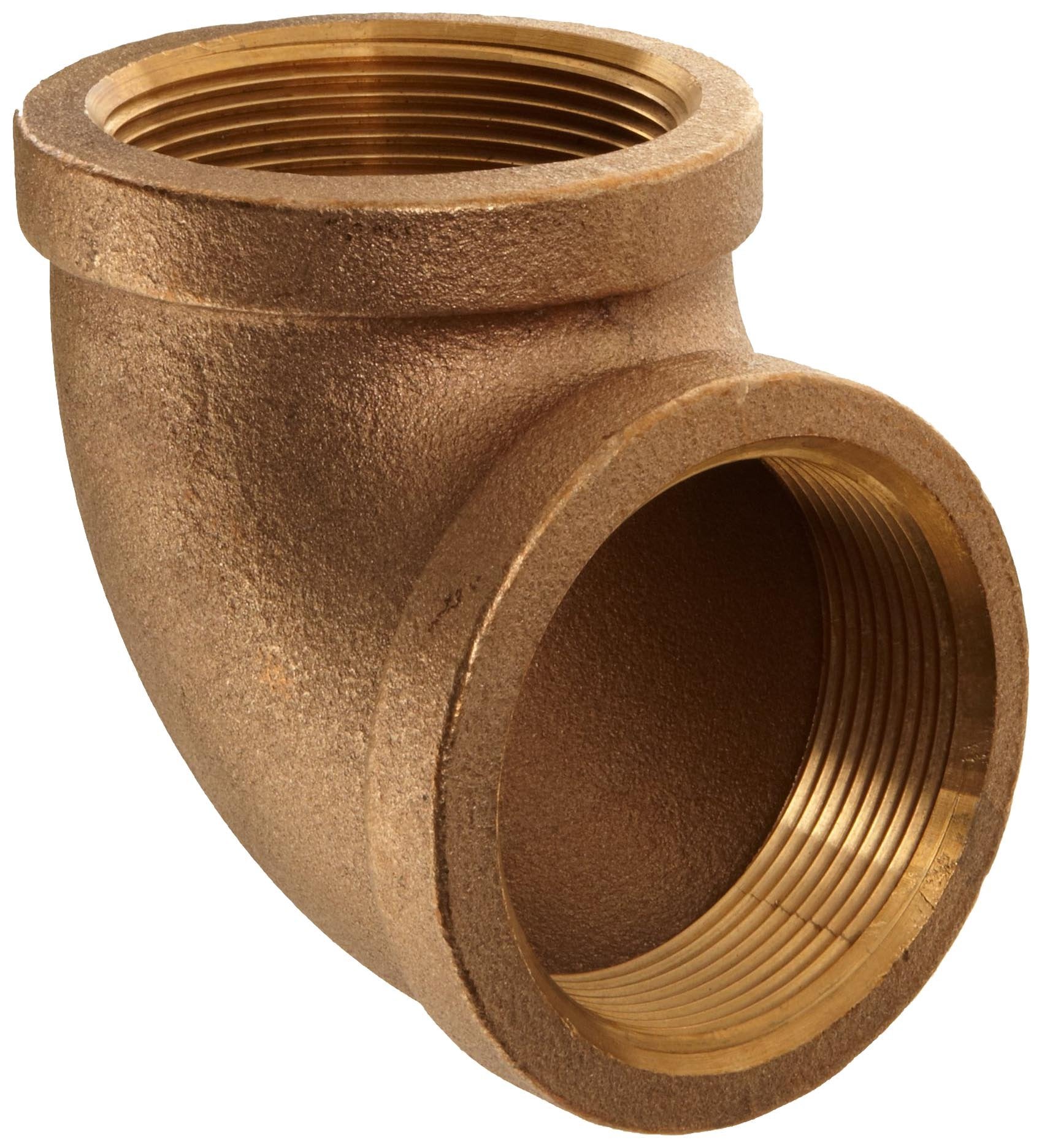

Merit Brass X101-12 Brass Pipe Fitting 90 Degree Elbow 0.75 Inch

Product Description

The Merit Brass X101-12 is a class 125 brass pipe fitting, specifically a 90-degree elbow designed for changing the flow direction between pipes. It features female National Pipe Taper (NPT) threads on both ends for secure connections to male threaded pipes.

• NPT threads offer a tighter seal over straight threads.
• Constructed from brass for enhanced machinability and corrosion resistance.
• Meets ANSI/ASME B16.15 and ASTM standards for quality assurance.

Product Highlights

Utilize this brass elbow for applications in plumbing and other industries requiring pipe fittings. Its right-angle change is essential for tight spaces, offering both durability and reliability in any setup.

Product Information

Standard Information

• Material: Brass
• Angle: 90 deg
• Connection Type: FNPT

Technical Specifications

• Size: 0.75 inches
• Pressure Class: 125 lb
• Schedule: STD
• Temperature Rating: -20 to 400 degrees Fahrenheit
• Standards/Certifications: ANSI/ASME B16.15, B1.20.1, ASTM B584, C83600
