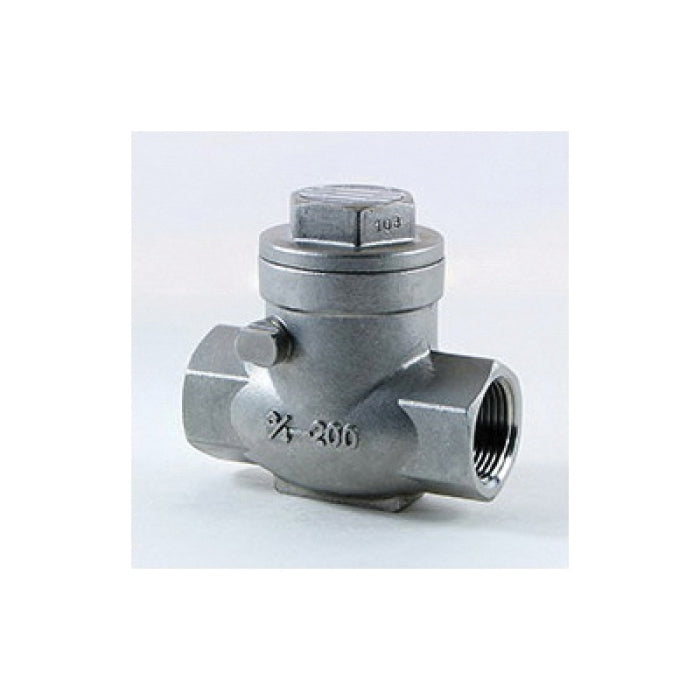

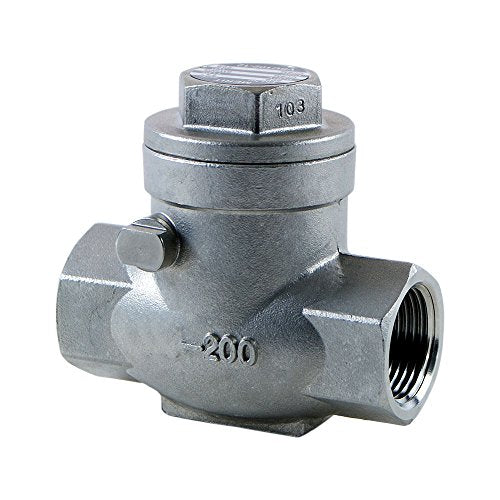

Merit Brass VSC102-12 Swing Check Valve 200 psi 3/4 in

Product Description

The Merit Brass Swing Check Valve, MPN VSC102-12, is a three-quarter inch valve designed to permit fluid flow in one direction while preventing backflow. This valve adheres to ASTM A351 standards and is built to withstand a working pressure of two hundred psi at a temperature of up to three hundred fifty degrees Fahrenheit.

• Constructed from stainless steel for durability and corrosion resistance.
• Full port design ensures optimal flow with minimal pressure loss.
• Easy installation with NPT threaded ends.

Product Highlights

This valve features a stainless steel body and trim with PTFE soft goods, making it reliable for various plumbing applications.

Product Information

Standard Information

• Manufacturer: Merit Brass
• Model: VSC102-12

Technical Specifications

• Connection Size: Three-fourths inch
• Connection Type: NPT
• Disc Material: Stainless steel
• Pressure Class: Class 200
• Pressure Rating: 200 psi
• Flow Rate: 16.3 gpm
• Temperature Rating: 350 degrees Fahrenheit
• Inlet to Outlet Length: 3.17 inches
• Top to Inlet Center: 2.17 inches
