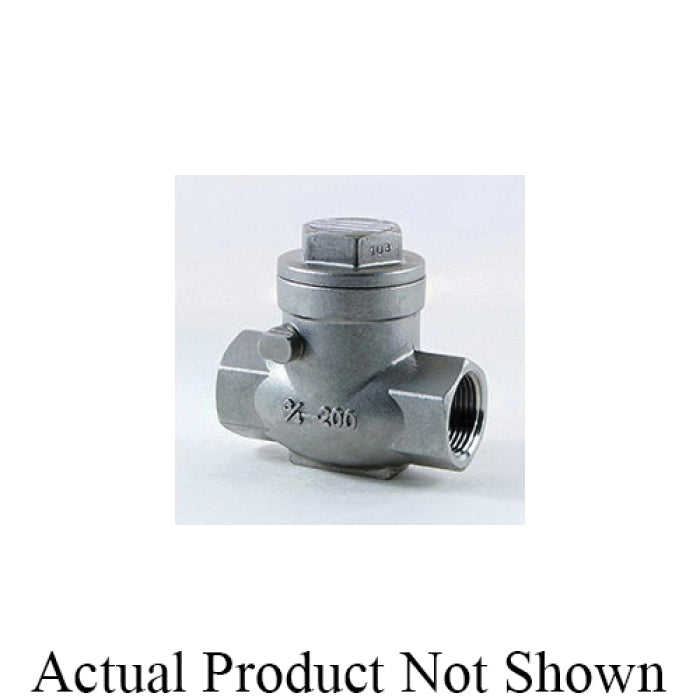

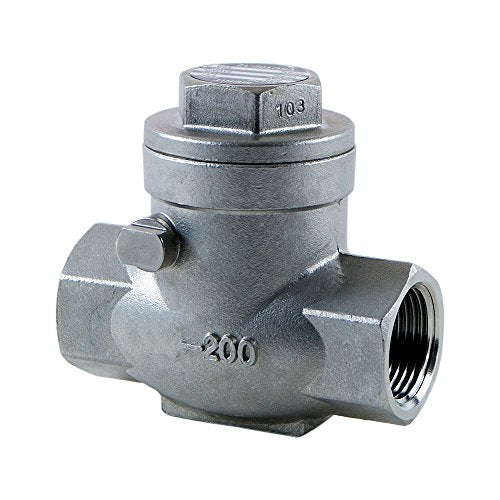

Merit Brass VSC102-04 Swing Check Valve 1/4 inch Class 200

Product Description

The Merit Brass VSC102-04 is a 1/4 inch swing check valve designed for reliable performance. This valve is rated for a working pressure of 200 psi and has a maximum temperature of three hundred fifty degrees Fahrenheit. It is constructed from stainless steel, ensuring durability and longevity. This valve is suitable for various applications including plumbing and HVAC systems.

• Designed per ASME B16.34 standards
• Tests conducted according to API 598 procedures
• Full port design for optimal flow

Product Highlights

This product features a stainless steel body and trim, PTFE soft goods, and is designed for easy installation.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: VSC102-04

Technical Specifications

• Body Material: Stainless Steel
• Trim Material: Stainless Steel
• End Style: Thread
• Flow Rate: 5.3 gpm
• Inlet to Outlet Length: 2.36 inches
• Pressure Class: 200 lb
• Pressure Rating: 200 psi
• Temperature Rating: 350 degrees Fahrenheit
• Nominal Size: 1/4 inch
• Port Type: Full
• Low Lead Compliance: No
• Top to Inlet Center: 1.63 inches
