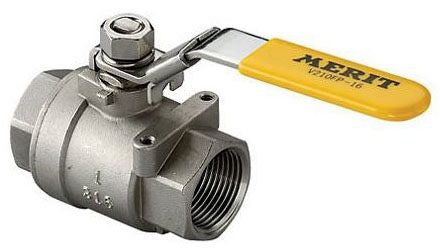

Merit Brass v210fp-32 2-piece Ball Valve 2in Fpt 316 Ss

Product Description

The MERIT BRASS v210fp-32 is a 2-piece full-port ball valve designed for demanding fluid control applications in commercial and industrial piping systems. Constructed from 316 stainless steel, it delivers corrosion resistance suitable for aggressive media, including chemicals, saltwater, and high-purity process fluids. The valve features female pipe thread (FPT) connections on both ends and carries a 1000 PSI pressure rating, making it well-suited for high-pressure service. At 6.24 pounds, it is a robust, full-bodied valve intended for professional installation by licensed plumbers and pipefitters working in process, mechanical, or utility piping applications.

This valve is commonly used in commercial mechanical rooms, industrial process lines, chemical handling systems, and marine or coastal installations where 316 stainless steel is specified for its superior chloride resistance. The 2-inch FPT connections accept standard NPT threaded pipe, simplifying integration into existing threaded piping systems. It is appropriate for both new construction and retrofit service where a durable shutoff valve is required in corrosive or wet environments.

Key Features

• 316 stainless steel body provides strong resistance to corrosion and chemical attack
• 1000 PSI pressure rating supports high-pressure service applications
• 2-inch FPT (female pipe thread) connections on both ends for standard NPT threaded pipe
• 2-piece full-port construction allows straight-through flow with minimal pressure drop
• Robust 6.24-pound build quality suited for demanding commercial and industrial environments

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 2-inch NPT threaded piping systems requiring 316 stainless steel construction and a 1000 PSI pressure class rating.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including IPC guidelines. Depressurize and fully drain the piping system before removing or installing any valve. Apply thread sealant or PTFE tape to male NPT threads before making up connections, and avoid overtightening, which can crack threaded fittings. Confirm the valve handle orientation aligns with system flow direction before returning the line to service.

Technical Specifications

• Size: 2 inches
• Connection Type: FPT (Female Pipe Thread, NPT)
• Material: Stainless Steel 316
• Pressure Class: 1000 PSI
• Weight: 6.24 pounds

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: v210fp-32
