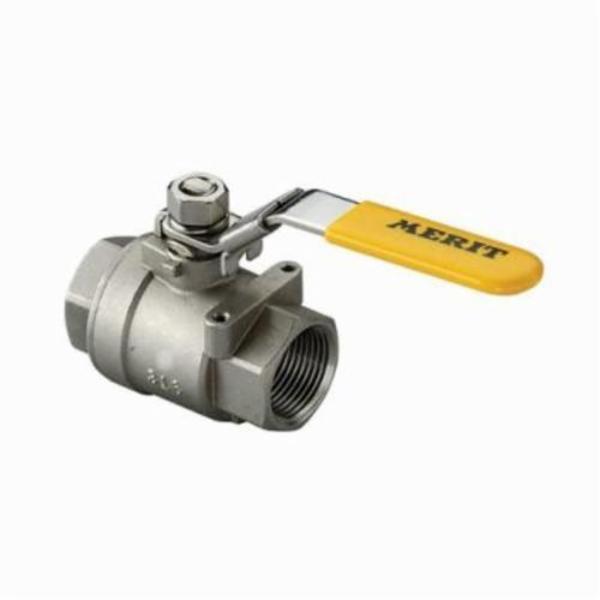

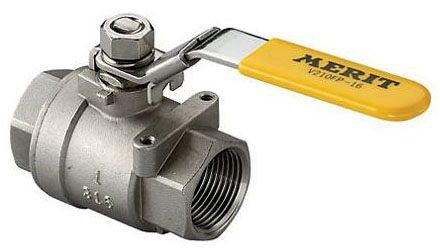

Merit Brass V210FP-12 V Series 2-Piece Ball Valve With Handle 3/4 in

Product Description

The Merit Brass V210FP-12 is a durable 2-piece ball valve sized at three-fourths of an inch. It connects using threaded ends and is suitable for gas, oil, and water applications. The valve is constructed from 316 stainless steel, ensuring long-lasting use. It supports a pressure class of 1000 pounds and features a full port design.

• Blow-out proof stem for added safety
• Pressure balance hole ball slot
• ASTM A351 CF8M end cap with various stainless steel components

Product Highlights

This valve is effective for various media such as gas, oil, and potable water. Its robust design makes it ideal for high-pressure applications.

Product Information

Standard Information

• Type: 2-Piece
• Series: V Series

Technical Specifications

• Nominal Size: 3/4 in
• End Style: Threaded
• Pressure Class: 1000 lb
• Port Type: Full
• Media: Gas/Oil/Water
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Handle Length: 4-24/25 in
• Maximum Temperature: 400 Deg F
• Minimum Temperature: 0 Deg F
• Valve Operator: Lever Handle
• Valve Seat Material: Teflon
• Valve Size: 3/4 in
• Valve Type: Ball Valve
