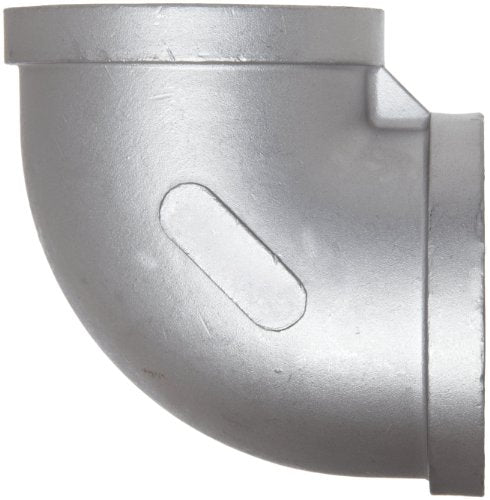

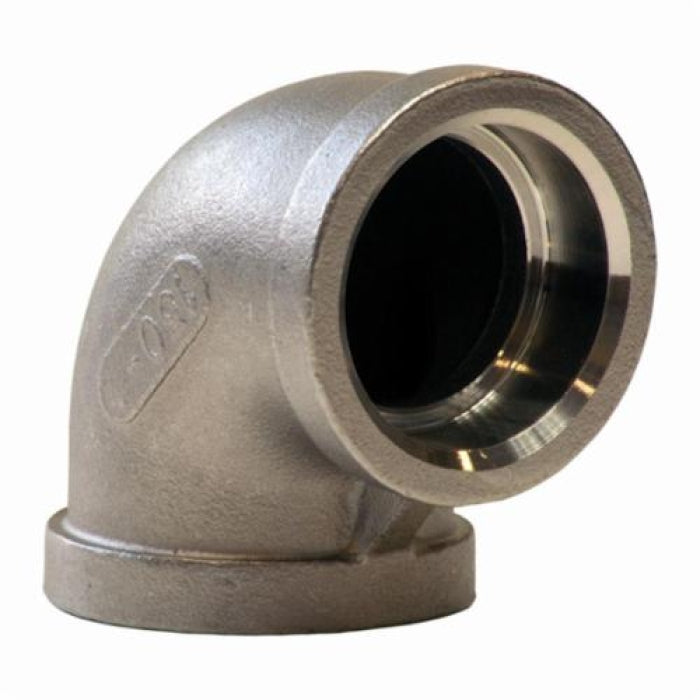

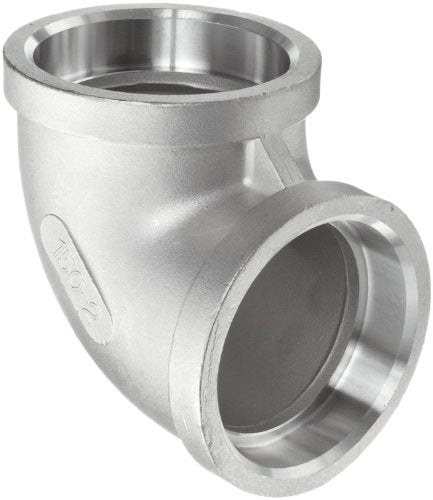

Merit Brass SWM401-16 Pipe Elbow 90 Degree Socket Weld 1 Inch

Product Description

The Merit Brass SWM401-16 is a stainless steel 304 cast pipe fitting designed as a 90-degree elbow. This fitting features female socket weld ends, facilitating the connection of two pipes while changing the flow direction. The design includes an internal recess to ensure smooth flow through the fitting.

• Made from stainless steel 304 for strength and corrosion resistance
• Features a socket weld connection for easy installation
• Meets industry standards MSS SP-114 and ASTM A351

Product Highlights

This pipe fitting is ideal for various industrial applications where reliable connections and fluid control are essential.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: SWM401-16

Technical Specifications

• Material: 304/304L Stainless Steel
• Nominal Size: 1 inch
• Fitting Type: 90 degree elbow
• End Style: Socket Welded
• Pressure Class: 150 lb
• Temperature Rating: 366 deg F
• Thickness: 0.13 inches
• Dimensions: 1.77 inches OD
• Domestic/Import: Import
