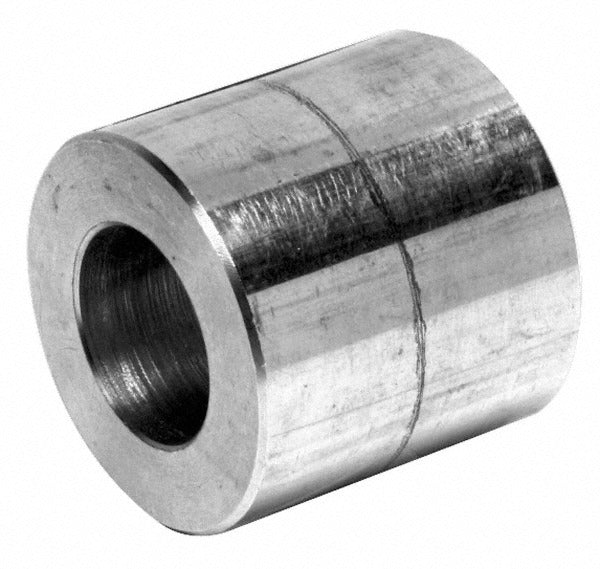

Merit Brass SW3612D-0806 Pipe Reducer 316 Ss 3000 Psi

Product Description

The MERIT BRASS SW3612D-0806 is a socket weld pipe reducer designed to transition from a 1/2-inch pipe to a 3/8-inch pipe in high-pressure piping systems. Constructed from 316 stainless steel, this fitting delivers strong corrosion resistance in aggressive media environments, including those involving chlorides, acids, and marine-grade conditions. Rated at 3,000 psi, it is suited for demanding industrial and process piping applications where standard carbon steel fittings would be inadequate. Licensed plumbers and pipefitters install this type of fitting in systems requiring a reliable, weld-in reduction between two socket weld pipe ends.

This reducer is used in commercial and industrial piping systems where a socket weld connection is specified, typically in high-pressure fluid or gas lines. The socket weld end connection style makes it appropriate for small-bore piping runs where threaded connections are not permitted or preferred. Typical applications include chemical processing, oil and gas distribution, marine plumbing, food-grade process lines, and pharmaceutical piping where 316 stainless steel is the material of choice for its elevated corrosion and temperature resistance.

Key Features

• 316 stainless steel construction for superior corrosion resistance in harsh and corrosive environments
• 3,000 psi pressure rating suitable for high-pressure piping service
• Socket weld x socket weld end connections on both ends
• Reduces 1/2-inch pipe to 3/8-inch pipe in a single fitting
• Compact fitting weight of 0.44 pounds minimizes added load on piping systems

Compatibility

Designed as an OEM-style socket weld reducer for use in 1/2-inch to 3/8-inch small-bore, high-pressure piping systems requiring 316 stainless steel fittings and a 3,000 psi pressure class rating.

Installation Notes

Installation of socket weld fittings is performed by licensed pipefitters or plumbers in accordance with applicable codes, including ASME B31.3 for process piping. Shut down and fully depressurize the system before cutting or fitting any pipe. Socket weld connections require proper gap spacing between the pipe end and the fitting socket before welding to allow for thermal expansion. Do not substitute this fitting in systems rated above its 3,000 psi pressure class.
