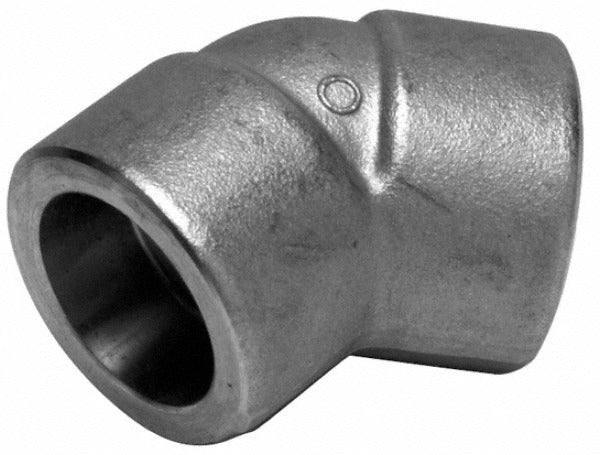

Merit Brass SW3602D-04 45 Deg Pipe Elbow 316 Ss Socket Weld

Product Description

The MERIT BRASS SW3602D-04 is a 45-degree pipe elbow fitting designed for socket weld installations in high-pressure piping systems. Constructed from 316 stainless steel, this fitting handles pressure ratings up to 3,000 psi, making it suitable for demanding industrial and mechanical applications. The 1/4 inch fitting size connects via socket weld on both ends, creating a strong, leak-resistant joint. Licensed pipefitters and plumbers install this type of fitting in process piping, instrumentation lines, and high-pressure fluid systems where corrosion resistance and joint integrity are critical.

This fitting is used in commercial and industrial piping systems where a 45-degree directional change is required in tight or angled runs. The 316 stainless steel construction offers strong resistance to corrosion, making it well-suited for wet environments, chemical exposure, and marine or offshore applications. It is appropriate for use in HVAC hydronic systems, compressed gas lines, and process fluid piping where socket weld connections are specified by design or code.

Key Features

• 316 stainless steel construction for superior corrosion resistance in harsh environments
• 3,000 psi pressure rating suitable for high-pressure piping applications
• Socket weld on both ends for strong, permanent pipe connections
• 45-degree elbow geometry for directional changes in confined or angled runs
• 1/4 inch fitting size compatible with standard schedule pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4 inch socket weld piping systems requiring a 45-degree elbow in 316 stainless steel construction.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber in accordance with applicable codes such as ASME B31.1 or B31.3 for pressure piping. Depressurize and isolate the system completely before cutting into any existing line. Socket weld fittings require proper pipe insertion depth and a qualified weld procedure to maintain the rated pressure integrity. Do not use thread sealants or compression-style techniques on socket weld connections.
