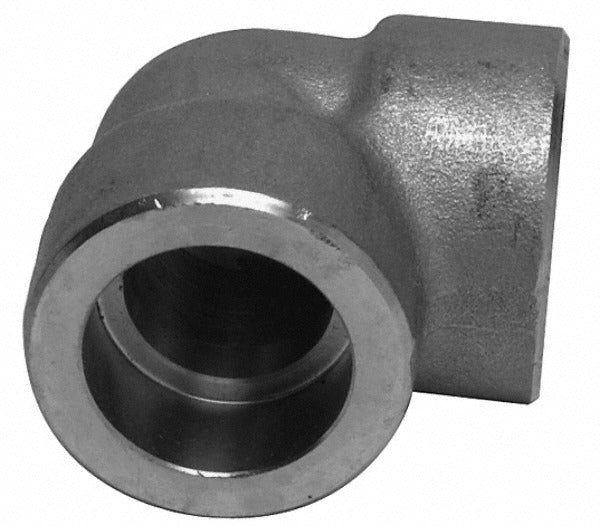

Merit Brass SW3601D-02 316 Ss 90 Elbow 1/8 in 3000 Psi

Product Description

The MERIT BRASS SW3601D-02 is a 90-degree socket weld pipe elbow machined from 316 stainless steel. It accepts 1/8-inch pipe on both ends via socket weld connections and is rated to 3,000 psi, making it suitable for demanding fluid and gas piping systems where corrosion resistance and pressure integrity are critical. The 316 alloy provides superior resistance to chlorides and process chemicals compared to standard 304 stainless. This fitting is typically installed by licensed pipefitters and plumbers working on industrial, process, or high-pressure mechanical systems.

This elbow is used wherever a 90-degree directional change is needed in a 1/8-inch high-pressure stainless steel piping run. Common applications include chemical processing lines, marine piping, food-grade systems, and instrumentation tubing where both corrosion resistance and a 3,000 psi pressure rating are required. Its compact 1/8-inch size makes it well suited for tight routing in panel, instrument, or small-bore process piping installations.

Key Features

• 316 stainless steel construction for excellent corrosion and chloride resistance
• 3,000 psi pressure rating for high-pressure service
• Socket weld connections on both ends for full-penetration weld joints
• 90-degree elbow geometry for right-angle directional changes in piping runs
• 1/8-inch fitting size for small-bore high-pressure applications

Compatibility

Designed as an OEM-style replacement or new-installation component for 1/8-inch socket weld pipe systems requiring 316 stainless steel fittings rated to 3,000 psi.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber in accordance with applicable codes such as ASME B16.11 for socket weld fittings. Depressurize and isolate the piping system completely before cutting into any existing line. Socket weld fittings require proper gap spacing before welding per ASME standards to allow for thermal expansion during the weld process. Do not over-insert pipe into the socket, as this can result in a deficient weld joint.
