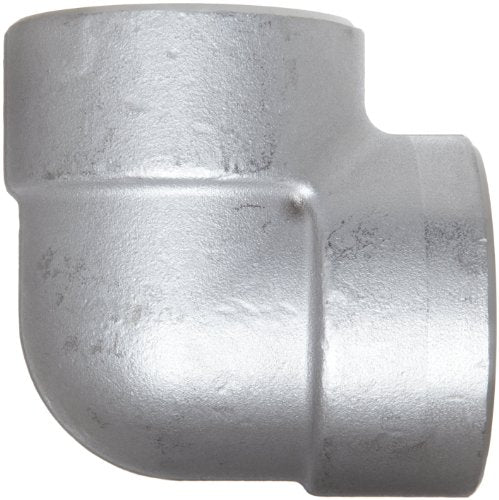

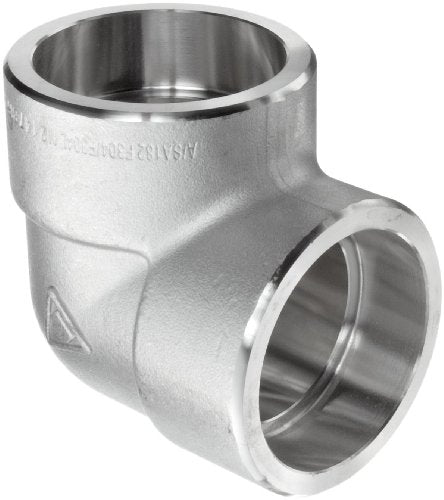

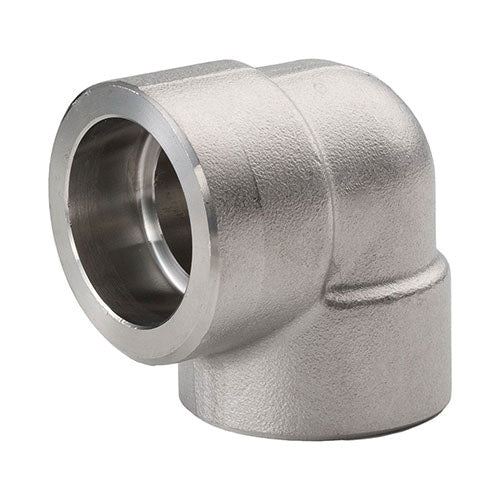

Merit Brass SW3401D-24 90 Degree Elbow Fitting Class 3000 1-1/2 Inch Socket Weld

Product Description

Merit Brass SW3401D-24 is a forged stainless steel 90-degree elbow fitting designed for connecting pipes in high-pressure systems. This fitting is made from durable stainless steel 304/304L and features female socket weld ends that assure a secure connection to male pipes. It is ideal for changing the flow direction of pipes with minimal turbulence.

• 90-degree elbow for effective flow direction changes
• Female socket weld ends for strong connections
• Constructed from stainless steel for durability and corrosion resistance

Product Highlights

This fitting is suitable for high-pressure applications and is compliant with industry standards ASTM A182, ASME SA182, and ANSI B16.11.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: SW3401D-24

Technical Specifications

• Angle: 90 degrees
• Connection Size: 1-1/2 inches
• Connection Type: Socket Weld
• Material: 304L Stainless Steel
• Pressure Class: Class 3000
• Thickness: 5.08 mm
• Method of Manufacture: Forged
• Standards/Certifications: ASME SA182, ANSI B16.11
