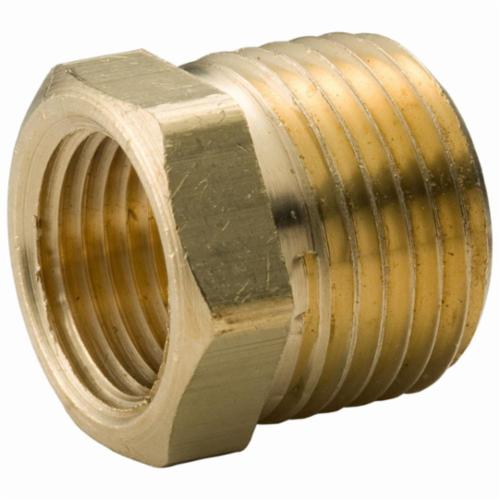

Merit Brass nlbs114-0604 hex head pipe bushing 3/8 x 1/4

Product Description

The MERIT BRASS NLBS114-0604 is a 3/8 x 1/4 inch hex head pipe bushing. Constructed from brass with male threaded x female threaded end connections. Suitable for commercial, plumbing, OEM, water, oil, gas, and steam applications. It conforms to ANSI/ASME B16.14/B15.15/B16.18/B1.20.1 standards and is lead-free.

• Lead-Free
• Good Corrosion Resistance from Water and Heat and Resists Attack from Salt Water and Acids, Minerals and Peaty Soils Contained in Water
• Relative Softness of Metal Provides for a Tight Seal and Ease of Installation

Product Highlights

The Merit Brass hex bushing is ideal for reducing pipe sizes in plumbing and other commercial applications.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: NLBS114-0604

Technical Specifications

• Fitting Type: Bushing
• Fitting Size: 3/8 x 1/4
• End Connections: Male Threaded x Female Threaded
• Connection Type: Threaded
• Pressure Rating (psi): 125 PSI
• Class: 125
• Lead Free: Yes
• Coating/Finish: Brass
• UNSPSC Code: 40175300
• Domestic/Import: Domestic
• Finish: Rough
• Fitting/Connector Type: Bushing
• Material: Brass
• Nominal Size: 3/8 x 1/4 in
• Pressure Class: 125 lb
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 400 deg F
• Type: Hex Head, Reducing, Bar Stock
• Applicable Standard: ANSI/ASME B16.14/B15.15/B16.18/B1.20.1
• Application: Commercial, Plumbing, OEM, Water, Oil, Gas, Steam
• Diameter: 3/8" x 1/4"
• Item: Brass Hex Head Reducing Bushing
• Material Specification: ASTM 584-06A
• Size: 3/8 Inch x 1/4 Inch
