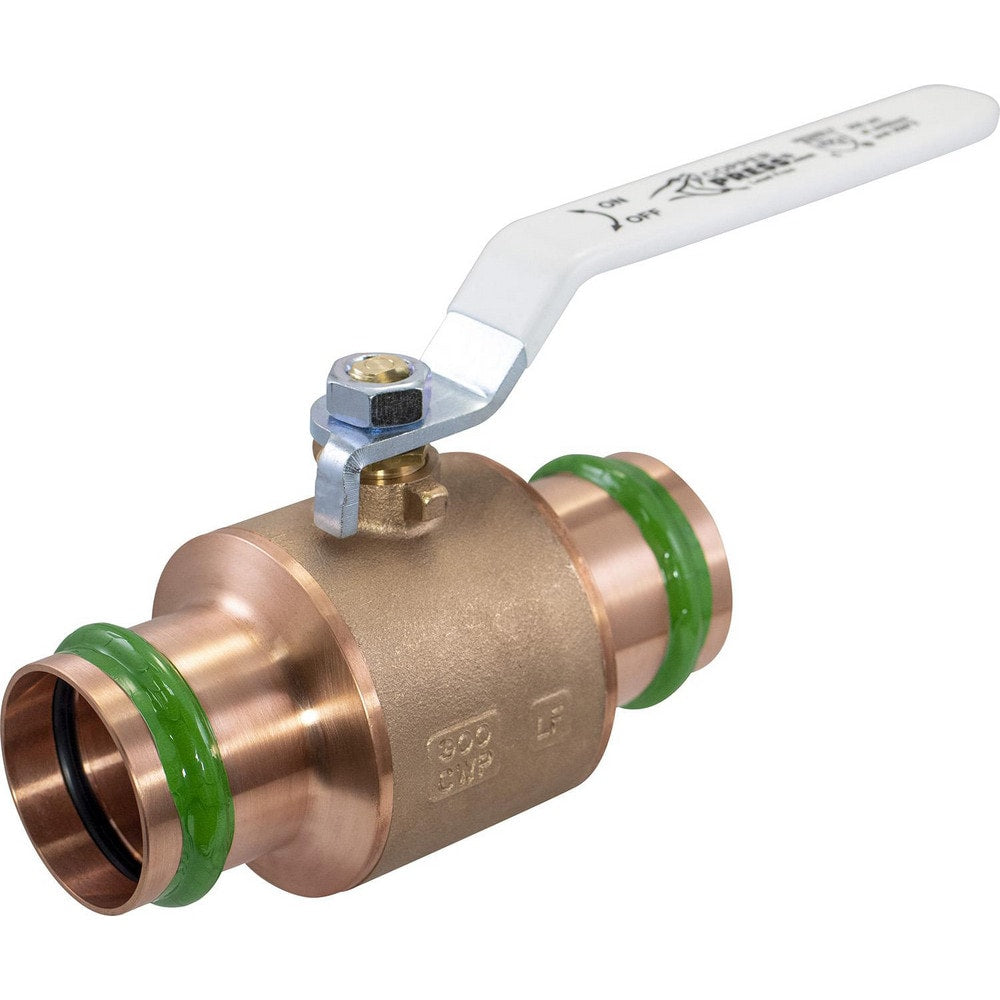

Merit Brass MB70020 Ball Valve, 1 in Nominal, Press End Style

Product Description

The Merit Brass MB70020 ball valve features a 1 in nominal size and press end style. Constructed from copper, this valve is suitable for various applications. It is designed for use in systems with temperatures ranging from 0 to 250 deg F.

• Features VISUAL LEAK BEFORE PRESS RING (VLBPR) for visualization of proper press at point of installation
• Offers permanent application PRINTING directly on fitting for easy visual inspection for life of application for H2O and gas
• Incorporates Leak BEFORE Press System - 4 Path LBP System for accurate testing results

Product Highlights

The Merit Brass ball valve offers reliable performance with its robust copper construction and leak detection system.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB70020

Technical Specifications

• End Style: Press
• Fitting/Connector Type: Valve
• Material: Copper
• Nominal Size: 1 in
• Temperature Rating: 0 to 250 deg F
• Valve Type: Ball Valve
• Pipe Size: 1
• Valve Structure: 1-Piece
• Tube Outside Diameter: 1.508
• End Connection: Press
• Port Type: Full
• Handle Material: Stainless Steel
• Handle Type: Lever
• Seal Material: EPDM
• Standards: NSF-61/377; IAPMO Z1157
• Maximum Working Pressure: 300.000 Psi
• Minimum Working Temperature (Deg C): -17
• Minimum Working Temperature (Deg F): 0
• Maximum Working Temperature (F): 250.000
• Lead Free: Yes
• Length: 4.4900
• Maximum Working Temperature (Deg C): 121
