Merit Brass MB35030 Small Diameter Female Union 1-1/4 x 1-1/4 in Nominal

Product Description

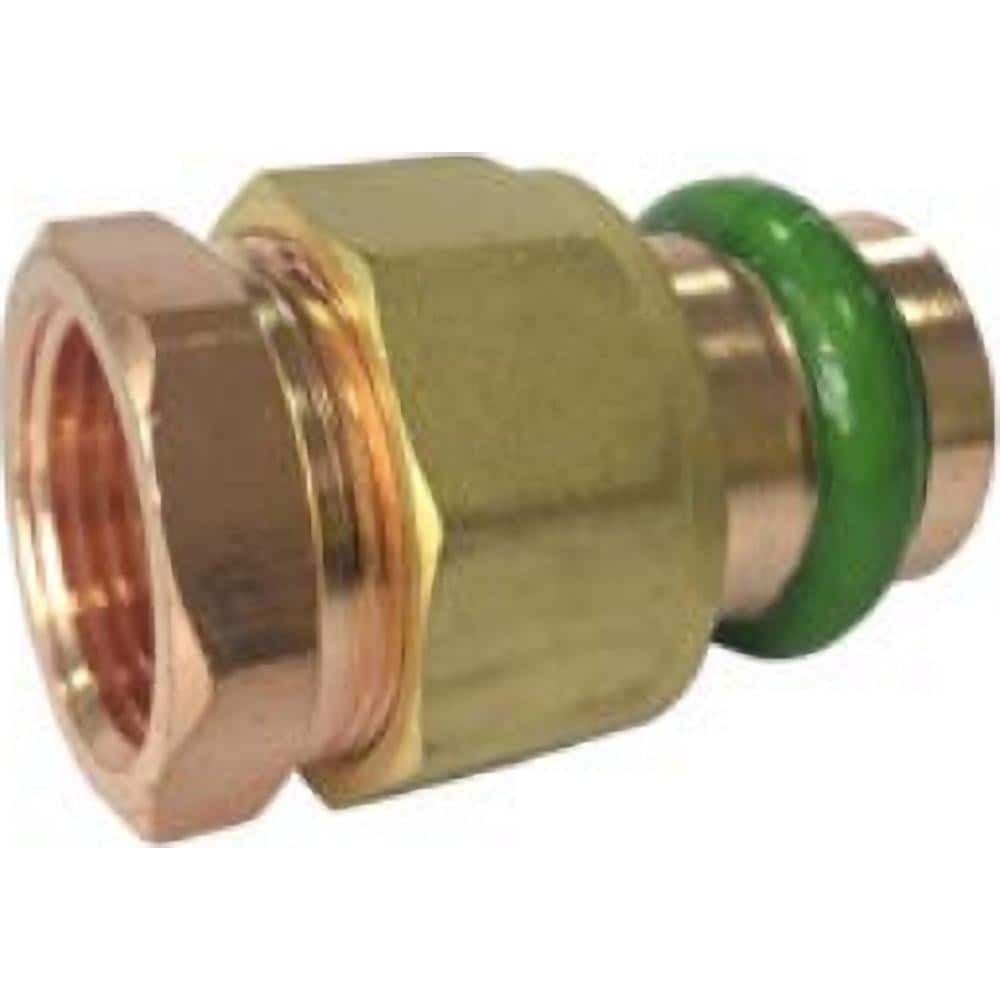

The MERIT BRASS MB35030 is a small diameter female union with a fitting/connector type of union. It features a nominal size of 1-1/4 x 1-1/4 in and press x FPT end style. Constructed from copper, it can withstand temperatures from 0 to 250 deg F and has dimensions of 2.93 in L.

• Features VISUAL LEAK BEFORE PRESS RING (VLBPR) for visualization of proper press at point of installation
• Offers permanent application PRINTING directly on fitting for easy visual inspection for life of application for H2O and gas (large & small diameters)
• Permanent application COLOR MARKINGS allow visual inspection for H2O Green EPDM water applications and Gas Yellow HNBR applications

Product Highlights

This small diameter female union is ideal for plumbing and gas applications requiring a secure and reliable connection.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB35030

Technical Specifications

• End Style: Press x FPT
• Fitting/Connector Type: Union
• Material: Copper
• Nominal Size: 1-1/4 x 1-1/4 in
• Temperature Rating: 0 to 250 deg F
• Type: Small Diameter
• Fitting Type: Female Union
• Fitting Size: 1-1/4
• Style: Press Fitting
• Connection Type: Push-to-Connect; Thread
• Thread Standard: NPT
• Outside Diameter (Inch): 1.764
• Maximum Working Pressure (Psi - 3 Decimals): 300.000
• Maximum Working Temperature (F): 250.000
• Minimum Working Temperature (Deg F): 0
• Lead Free: Yes
• Standards: IAPMO PS117; NSF-61/372
• Maximum Working Temprature (Deg C): 121
• Minimum Working Temperature (Deg C): -17
