Merit Brass MB34010 Small Diameter Male Union 3/4 x 3/4 in Nominal

Product Description

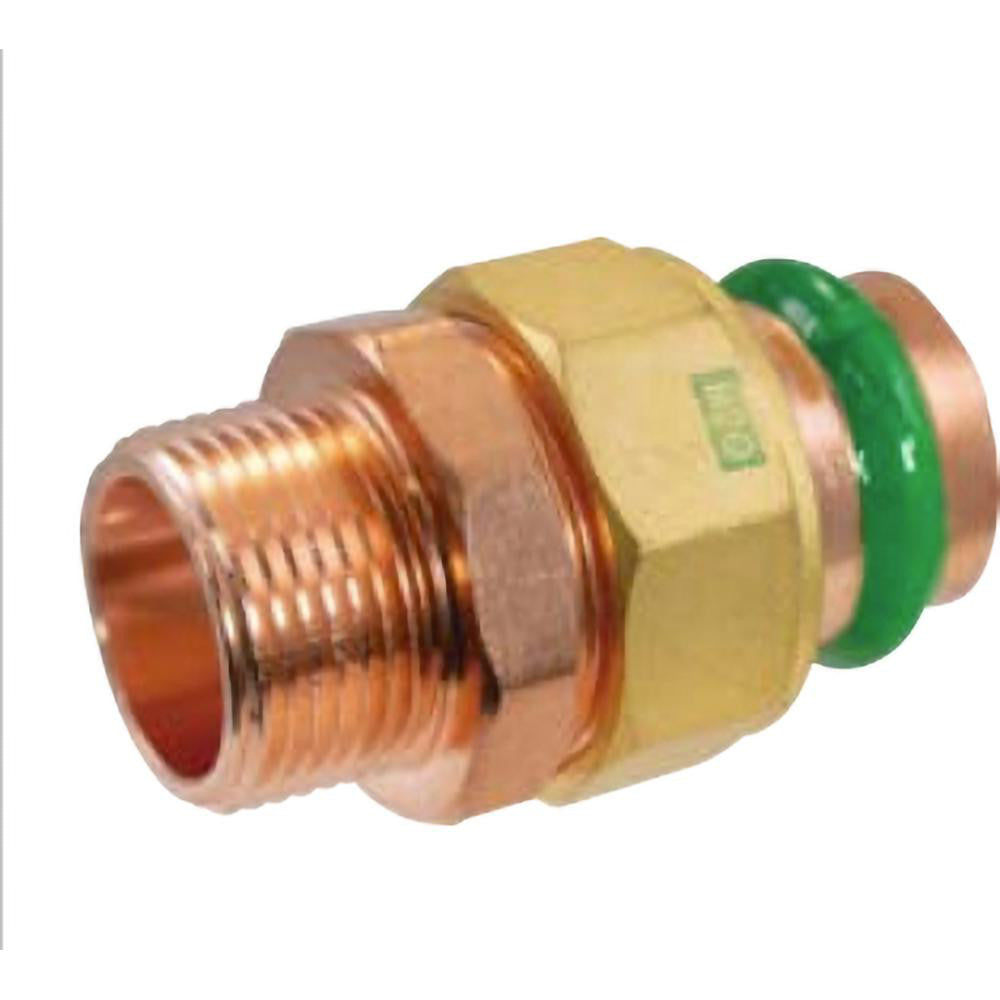

The Merit Brass MB34010 small diameter male union features a 3/4 x 3/4 in nominal size with press x MPT end style. Constructed from copper, this fitting is suitable for applications within a temperature range of 0 to 250 deg F. It is designed for use as a union fitting/connector.

• Features VISUAL LEAK BEFORE PRESS RING (VLBPR) for visualization of proper press at point of installation
• Offers permanent application PRINTING directly on fitting for easy visual inspection for life of application for H2O and gas (large & small diameters)
• Incorporates Leak BEFORE Press System - 4 Path LBP System for accurate testing results

Product Highlights

The Merit Brass male union is ideal for plumbing and HVAC applications requiring a secure and reliable connection.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB34010
• Country of Origin: VARIOUS

Technical Specifications

• End Style: Press x MPT
• Fitting/Connector Type: Union
• Material: Copper
• Nominal Size: 3/4 x 3/4 in
• Temperature Rating: 0 to 250 deg F
• Type: Small Diameter
• Fitting Type: Male Union
• Fitting Size: 3/4
• Style: Press Fitting
• Connection Type: Push-to-Connect; Threaded
• End Connection: Press x Thread
• Thread Standard: NPT
• Maximum Working Pressure (PSI - 3 Decimals): 300.000
• Maximum Working Temperature (F): 250.000
• Minimum Working Temperature (Deg F): 0
• Lead Free: Yes
• Standards: IAPMO PS117; NSF-61/372
• Maximum Working Temprature (Deg C): 121
• Outside Diameter (Inch): 1.252
• Temperature Range: 0°F to 250°F
• Minimum Working Temperature (Deg C): -17
