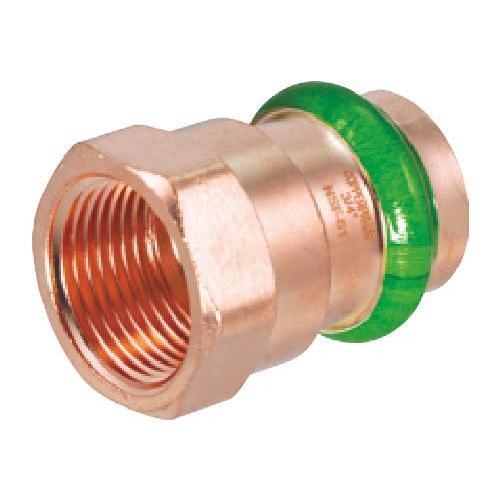

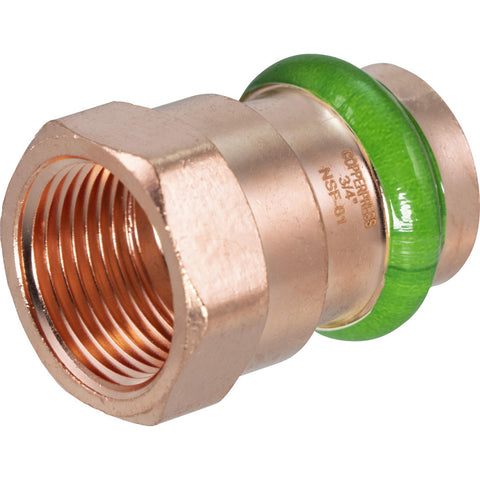

Merit Brass MB22710 Small Diameter Female Adapter 1-1/4 x 1-1/2 in Nominal

Product Description

The Merit Brass MB22710 is a small diameter female adapter with a fitting/connector type of adapter. It features a nominal size of 1-1/4 x 1-1/2 in and a press x FPT end style. Constructed from copper, it is suitable for temperatures ranging from 0 to 250 deg F and has dimensions of 2.20 in L.

• Features VISUAL LEAK BEFORE PRESS RING (VLBPR) for visualization of proper press at point of installation
• Offers permanent application PRINTING directly on fitting for easy visual inspection for life of application for H2O and gas (large & small diameters)
• Has permanent application COLOR MARKINGS allow visual inspection for H2O Green EPDM water applications and Gas Yellow HNBR applications

Product Highlights

This Merit Brass female adapter is ideal for plumbing, HVAC, municipal, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB22710
• Country of Origin: VARIOUS

Technical Specifications

• End Style: Press x FPT
• Fitting/Connector Type: Adapter
• Material: Copper
• Nominal Size: 1-1/4 x 1-1/2 in
• Temperature Rating: 0 to 250 deg F
• Type: Small Diameter
• Operating Temperature: 300 psi
• Style: Press Fitting
• Connection Type: Push-to-Connect; Threaded
• Thread Standard: NPT
• Maximum Working Pressure (PSI - 3 Decimals): 300.000
• Maximum Working Temperature (F): 250.000
• Minimum Working Temperature (Deg C): -17
• Minimum Working Temperature (Deg F): 0
• Lead Free: Yes
• Standards: IAPMO PS117; NSF-61/372
• Maximum Working Temprature (Deg C): 121
• Outside Diameter (Inch): 2.122
• UNSPSC Code: 40175305
