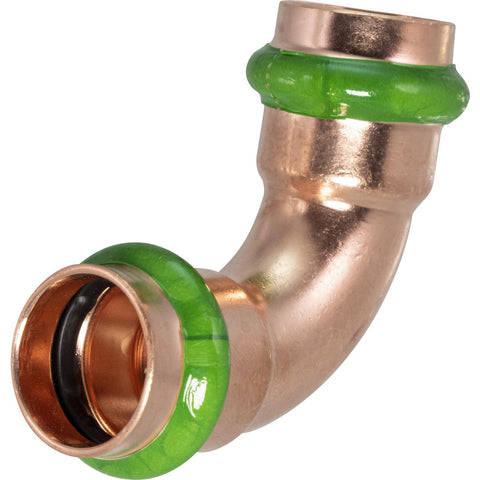

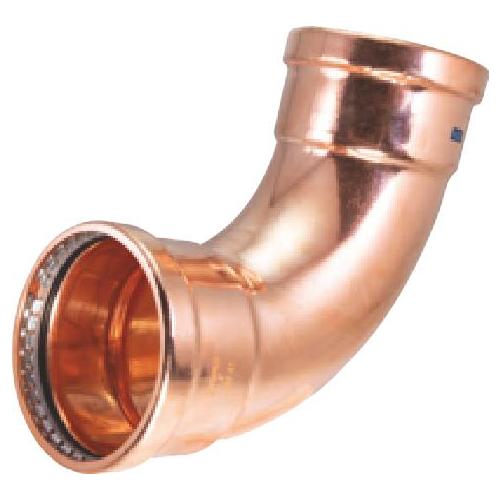

Merit Brass MB22130 XL 90 deg Elbow, 4 x 4 in Nominal, Press End Style

Product Description

The Merit Brass MB22130 XL 90 deg Elbow features a 4 x 4 in nominal size and press end style, constructed from copper. This fitting is designed for applications ranging from 0 to 250 deg F. It facilitates a 90-degree change in direction within piping systems.

• Features VISUAL LEAK BEFORE PRESS RING (VLBPR) for visualization of proper press at point of installation
• Offers permanent application PRINTING directly on fitting for easy visual inspection for life of application for H2O and gas (large & small diameters)
• Incorporates Leak BEFORE Press System - 4 Path LBP System offers the most accurate testing results without compromising the integrity of the fitting

Product Highlights

The Merit Brass 90 deg Elbow is ideal for potable water, hydronic heating, chilled water, compressed air, non-medical gases, low pressure steam, and vacuum applications.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB22130
• Country of Origin: VARIOUS

Technical Specifications

• End Style: Press
• Fitting/Connector Type: 90 deg Elbow
• Material: Copper
• Nominal Size: 4 x 4 in
• Temperature Rating: 0 to 250 deg F
• Type: XL
• Application Type: Potable water, Hydronic heating (w/ glycol), Chilled water, Compressed air (300 PSI max), Non-medical gases (140 PSI max), Low pressure steam (15 PSI max), Vacuum (24.5 in mercury max @ 68°F)
• Series: CopperPress
• Pressure Rating: 300 psi
• Fitting Size: 4
• Style: Press Fitting
• Connection Type: Push-to-Connect
• Maximum Working Pressure (PSI - 3 Decimals): 300.000
• Maximum Working Temperature (F): 250.000
• Minimum Working Temperature (Deg C): -17
• Minimum Working Temperature (Deg F): 0
• Lead Free: Yes
• Standards: IAPMO PS117; NSF-61/372
• Maximum Working Temprature (Deg C): 121
• Outside Diameter (Inch): 4.707
