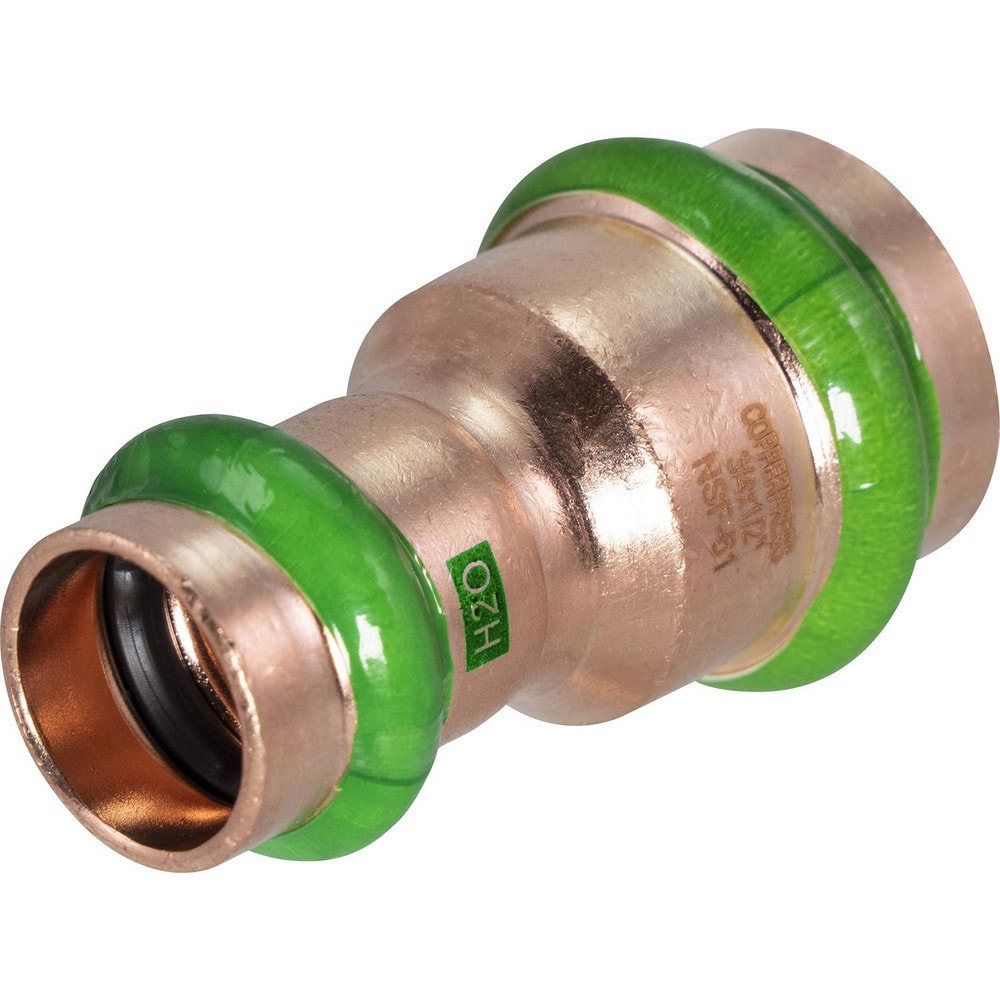

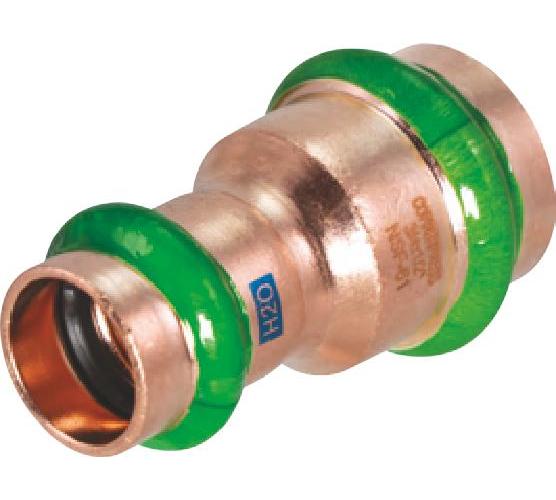

Merit Brass MB12520 Small Diameter Coupling Reducer 2 x 1-1/2 in Nominal

Product Description

The Merit Brass MB12520 small diameter coupling reducer is designed for connecting pipes of different sizes. This reducer features press end style connections and is made of copper. It is suitable for use in systems with temperatures ranging from 0 to 250 deg F. The fitting has dimensions of 3.76 in L.

• Features a VISUAL LEAK BEFORE PRESS RING (VLBPR) for leak detection during installation.
• Offers permanent application printing for easy visual inspection.
• Utilizes a Leak BEFORE Press System with a 4-Path LBP System for accurate testing.

Product Highlights

This copper reducer coupling is ideal for plumbing and HVAC applications requiring a transition between 2 inch and 1-1/2 inch pipes.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB12520

Technical Specifications

• Dimensions: 3.76 in L
• End Style: Press
• Fitting/Connector Type: Reducer
• Material: Copper
• Nominal Size: 2 x 1-1/2 in
• Temperature Rating: 0 to 250 deg F
• Type: Small Diameter
• Operating Temperature: 300 psi
• Temperature Range: 0°F to 250°F
• Fitting Type: Reducing Coupling
• End Connection: Press
• Outside Diameter (Inch): 2.594
• Maximum Working Pressure (Psi - 3 Decimals): 300.000
• Maximum Working Temperature (F): 250.000
• Minimum Working Temperature (Deg C): -17
• Minimum Working Temperature (Deg F): 0
• Lead Free: Yes
• Standards: IAPMO PS117; NSF-61/372
• Maximum Working Temprature (Deg C): 121
