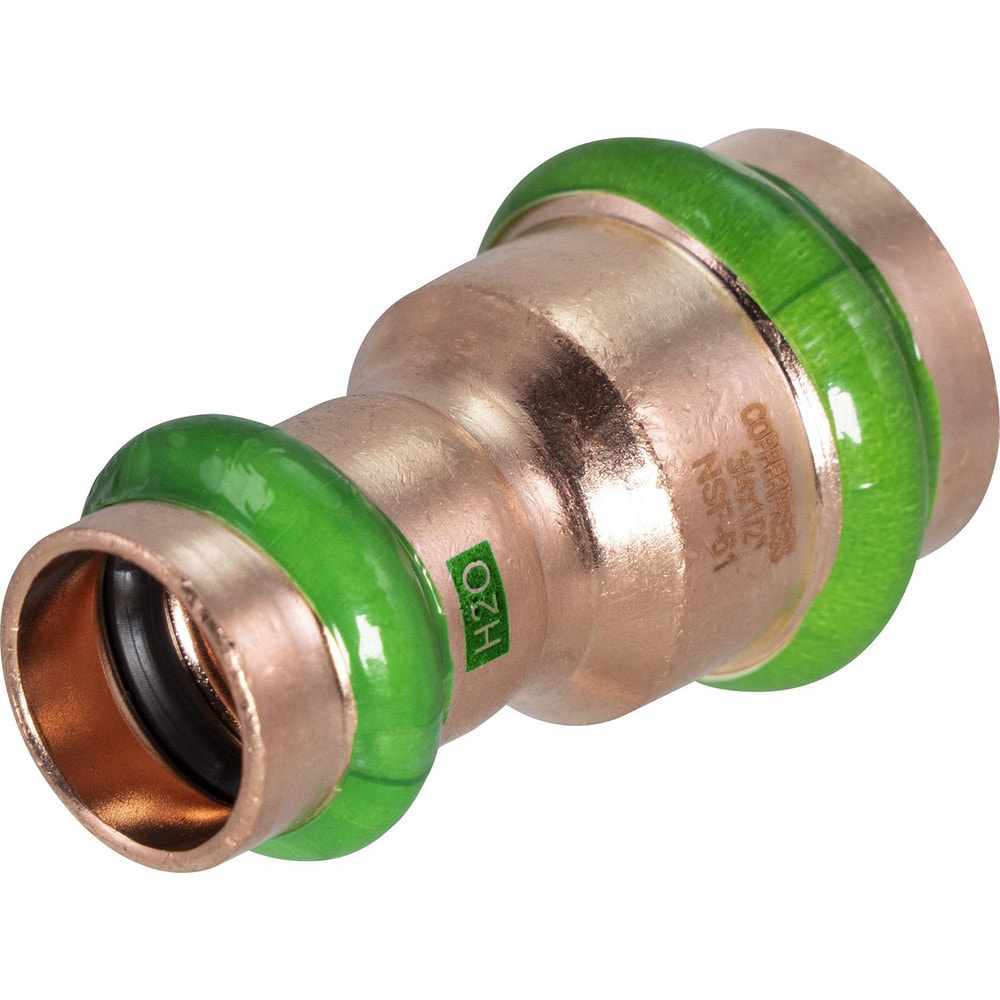

Merit Brass MB12440 Small Diameter Coupling Reducer 1-1/4 x 3/4 in Nominal

Product Description

The Merit Brass MB12440 is a small diameter coupling reducer with a fitting/connector type reducer. It has a nominal size of 1-1/4 x 3/4 in and a press end style. Constructed from copper, it measures 2.66 in L in dimensions and can withstand temperatures from 0 to 250 deg F. Suitable for plumbing, HVAC, municipal, mechanical, and industrial applications.

• Features VISUAL LEAK BEFORE PRESS RING (VLBPR) for visualization of proper press at point of installation
• Offers permanent application PRINTING directly on fitting for easy visual inspection for life of application for H2O and gas (large & small diameters)
• Incorporates Leak BEFORE Press System - 4 Path LBP System for accurate testing results without compromising the integrity of the fitting

Product Highlights

This copper reducer ensures secure connections with visual indicators for proper installation and leak prevention.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: MB12440
• Country of Origin: VARIOUS

Technical Specifications

• End Style: Press
• Fitting/Connector Type: Reducer
• Material: Copper
• Nominal Size: 1-1/4 x 3/4 in
• Temperature Rating: 0 to 250 deg F
• Type: Small Diameter
• Standard Approvals: ASME B31.1 Power Piping, B31.3 Process Piping, B31.9 Building Services Piping IPC, IMC, IRC, UPC, UMC CPC & CMC (California Plumbing and Mechanical Codes) City of Los Angeles Plumbing and Mechanical Codes Massachusetts Regulation 248 CMR 10.00: Uniform State Plumbing Code Massachusetts State Building Code 780 CMR Ninth Edition: Chapter 28 ICC-ES LC 1002 Press Connection Fittings for Potable Water Tube and Radiant Heating Systems IAPMO/ANSI/CAN Z1117 Press Connections NSF/ANSI/CAN 61 Drinking Water System Components – Health Effects NSF/ANSI/CAN 372 Drinking Water System Components – Lead Content
• Fitting Type: Reducing Coupling
• Style: Press Fitting
• Outside Diameter (Inch): 1.764
• Maximum Working Pressure (Psi - 3 Decimals): 300.000
• Maximum Working Temperature (F): 250.000
• Minimum Working Temperature (Deg F): 0
• Lead Free: Yes
• Standards: IAPMO PS117; NSF-61/372
• Maximum Working Temprature (Deg C): 121
• Minimum Working Temperature (Deg C): -17
