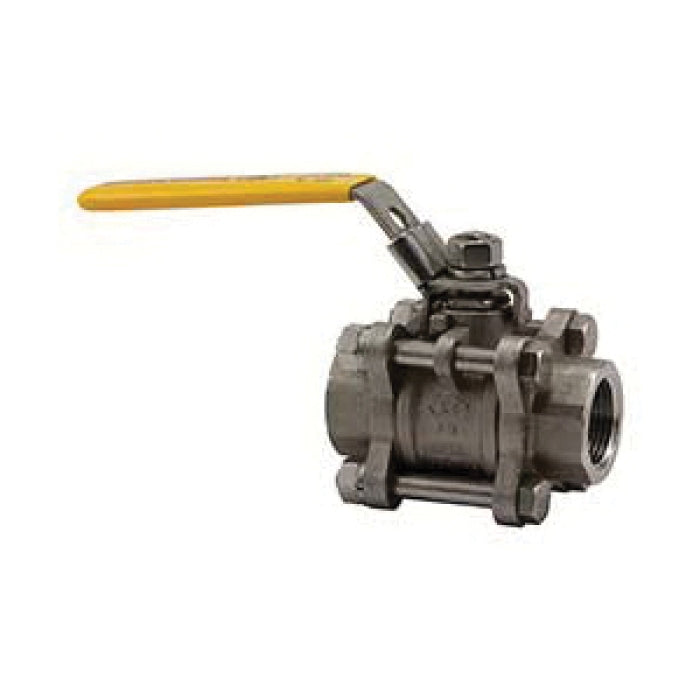

Merit Brass KV310FP-12 K Series 3-Piece KI-Pattern Ball Valve 3/4 in

Product Description

The Merit Brass KV310FP-12 is a K Series 3-piece KI-pattern ball valve designed for reliable fluid control. It features a three-quarter inch nominal size with FNPT end style and a pressure class rating of one thousand pounds. The valve is suitable for gas, oil, and water media, making it versatile for various applications.

• Constructed with durable 316 stainless steel
• Lever operated actuator for ease of use
• Full port design for maximum flow

Product Highlights

This 3-piece valve is ideal for use in plumbing and HVAC systems. Its full port design ensures minimal pressure drop and enhances flow efficiency.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: KV310FP-12

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 3.15 inches
• Media: Gas/Oil/Water
• Nominal Size: 3/4 inches
• Orifice Size: 0.79 inches
• Port Type: Full
• Pressure Class: 1000 lb
• Series: K Series
• Top to Inlet Center: 2.48 inches
• Trim Material: 316 Stainless Steel Stem and PTFE Ball Seat
• Type: 3-Piece KI-Pattern
