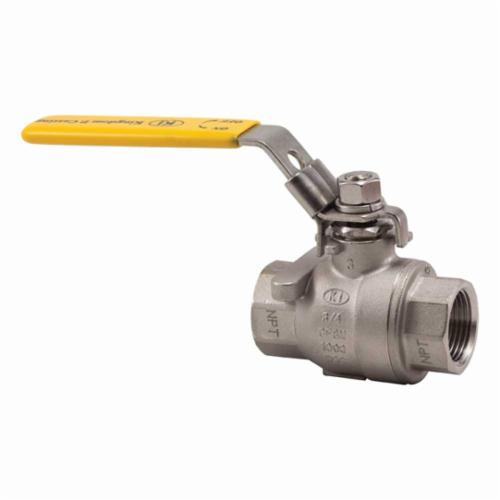

Merit Brass KV210FP-24 K Series 2-Piece Ball Valve With Handle 1-1/2 in Nominal FNPT

Product Description

The Merit Brass KV210FP-24 is a two-piece ball valve designed for various applications. Made from twenty-three alloy 316 stainless steel, this valve is built to handle gas, oil, and water. The nominal size measures one and a half inches with FNPT ends, suitable for high-pressure environments. This valve features a blow-out proof stem and a full port design which ensures maximum flow capacity. It is an ideal choice for HVAC systems and plumbing needs.

• Flow media: Gas, Oil, Water
• Blow-out proof stem
• Pressure rating: 1000 lb

Product Highlights

Engineered for reliability and efficiency, this valve meets stringent industry standards.

Product Information

Standard Information

• Brand: Merit Brass
• Manufacturer: Merit Brass

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Dimensions: 1-1/2 in Dia
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 4.13 in
• Media: Gas/Oil/Water
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Class: 1000 lb
• Series: K Series
• Top to Inlet Center: 3.78 in
• Trim Material: 316 Stainless Steel Stem and PTFE Ball Seat
• Type: 2-Piece
