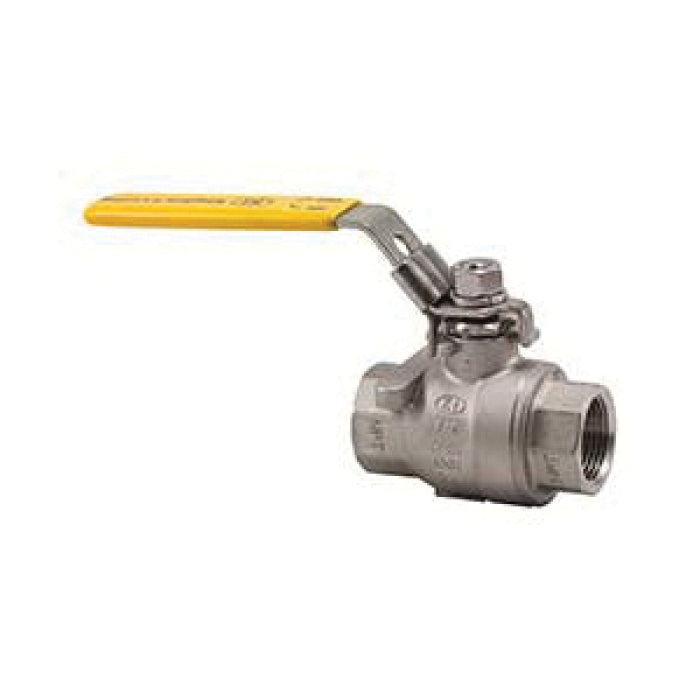

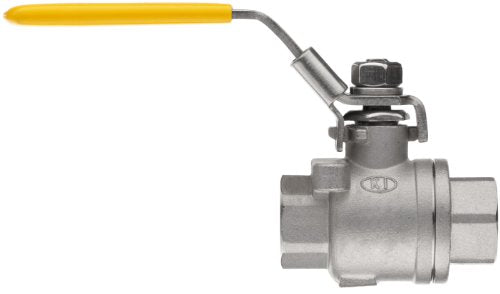

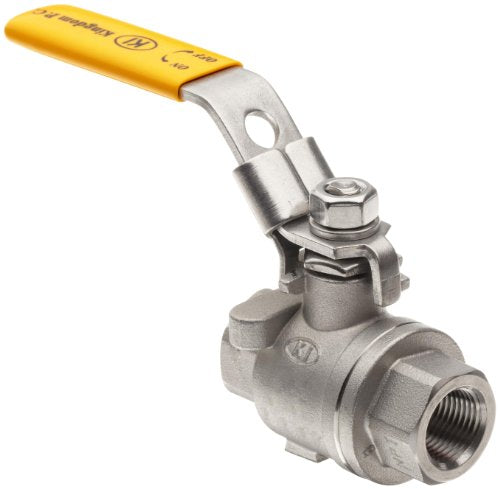

Merit Brass KV210FP-20 Ball Valve Full Port 1-1/4 NPT Female

Product Description

The Merit Brass KV210FP-20 is a two-piece full port ball valve designed for handling water, oil, and gas applications. Constructed from stainless steel 316, this valve offers high strength and corrosion resistance compared to stainless steel 304. It features a lever handle with a vinyl sleeve for easy manual operation and female National Pipe Taper (NPT) threaded connections on both ends for secure fitting.

• Full port design for reduced friction and improved flow efficiency
• Supports a maximum pressure rating of 1,000 pounds per square inch (gauge) (psig)
• Working temperature range from zero to four hundred degrees Fahrenheit

Product Highlights

This ball valve allows for effective control of flow between pipes and is suitable for various applications, including water lines and processing plants.

Product Information

Standard Information

• Brand: Merit Brass
• Model: KV210FP-20

Technical Specifications

• Body Material: 316 Stainless Steel
• End Style: FNPT
• Nominal Size: 1-1/4 inches
• Pressure Class: 1000 pounds
• Orifice Size: 1.26 inches
• Port Type: Full
• Media Compatibility: Gas, Oil, Water
• Inlet to Outlet Length: 3.7 inches
• Top to Inlet Center: 3.27 inches
• Softgoods Material: PTFE
• Domestic/Import: Import
