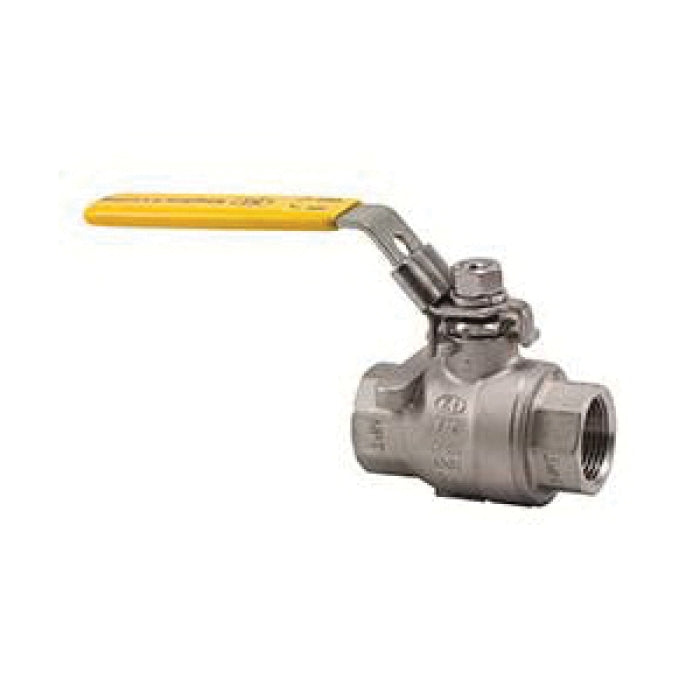

Merit Brass KV210FP-12 K Series 2-Piece KI-Pattern Ball Valve With Handle 3/4 in

Product Description

Merit Brass offers the KV210FP-12, a K Series 2-Piece KI-Pattern Ball Valve. It features a three-quarter inch nominal size with an FNPT end style suitable for various applications. The valve is designed to handle gas, oil, and water, supporting a pressure class of 1000 pounds. The full port design ensures efficient flow, while the PTFE softgoods provide resistance to chemicals.

• Two-piece KI-pattern design
• Stainless steel body for durability
• Compatible with gas, oil, and water

Product Highlights

The KV210FP-12 is ideal for HVAC, plumbing, and industrial applications.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: KV210FP-12

Technical Specifications

• Body Material: 316 Stainless Steel
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 2.85 inches
• Media: Gas/Oil/Water
• Nominal Size: 3/4 inches
• Orifice Size: 0.79 inches
• Port Type: Full
• Pressure Class: 1000 lb
• Series: K Series
• Softgoods Material: PTFE
• Top to Inlet Center: 2.52 inches
• Trim Material: 304/316 Stainless Steel Stem
• Type: 2-Piece KI-Pattern
